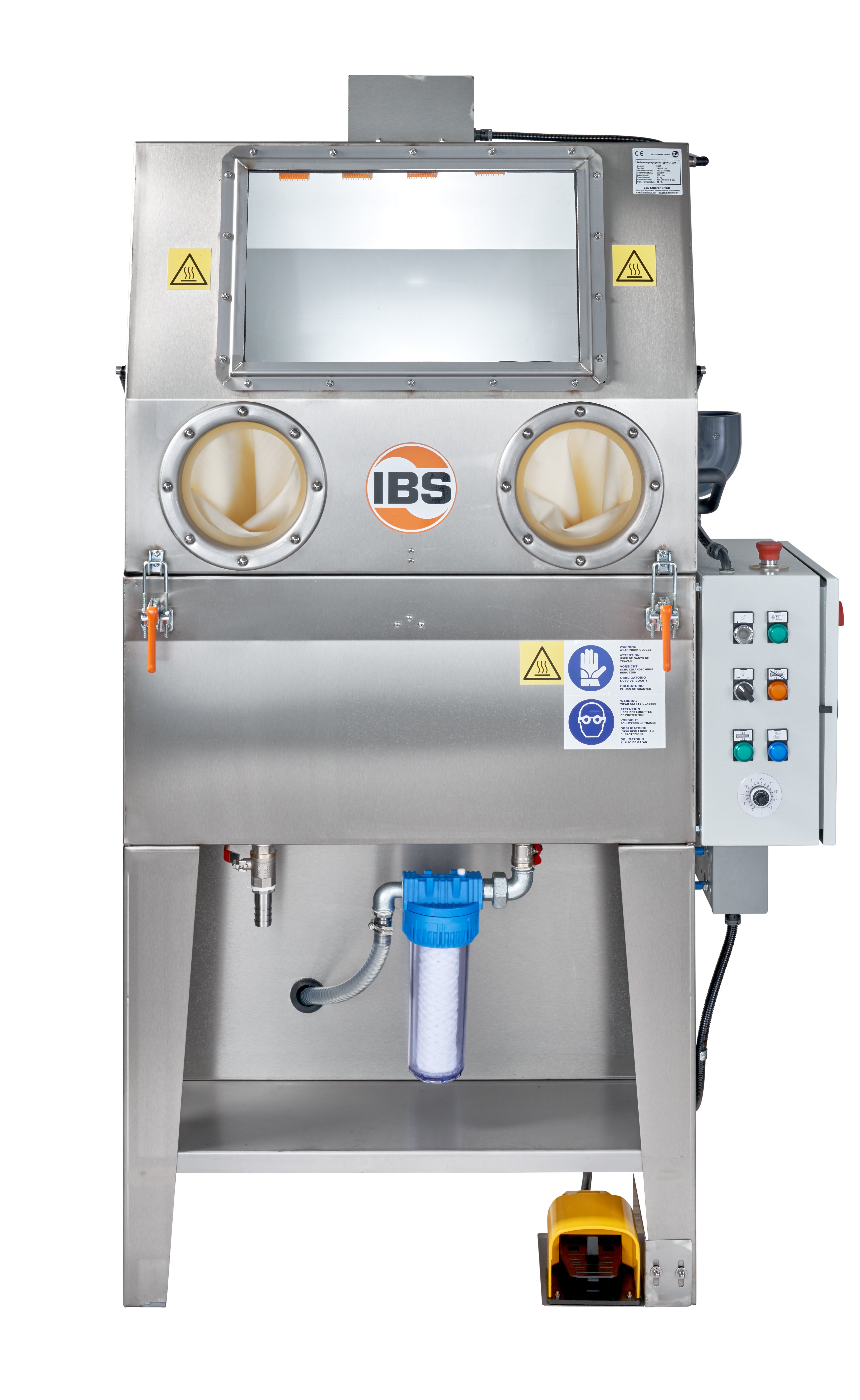

IBS-Parts Cleaning Device Type WD-100
Robust industrial version for manual cleaning of small and medium-sized parts up to 50 kg using the high-pressure spray method.
Description
Description of the
The IBS parts cleaning device type WD-100 was specially developed for manual cleaning of small parts contaminated with oil and grease using the high-pressure spraying method. The robust stainless steel design is operated with neutral or alkaline water-based cleaning agents. The bath in the tank is simply filled with cleaning agent after heating to operating temperature (20 to max. 45°C). By pressing the foot switch, the cleaning fluid flows through the spray gun and the parts contaminated with oil and grease can be easily blasted off.Advantages
- The high-pressure spray gun with nozzle ensures user-friendly handling (spraying method)
- The washing solution is heated up to 45°C in an energy-efficient manner
- Steam outlet and air nozzles keep the large viewing window clean and free of spray water
- Powerful LED light ensures optimum lighting and a clear view of the interior
- The temperature regulator allows individual adjustment to every cleaning task
- With low water cut-out for optimum protection
- The fine filter catches coarse dirt and is easy to replace
Further information
Technical data
| Connection: | 7 KW, 400 V, 50 Hz, 3 KW Heizleistung |
|---|---|
| External dimensions WxDxH: | 1140 x 650 x 1845 mm (B x T x H) |
| Load capacity: | 50 kg |
| Washing tank capacity: | 60 L |
| Weight: | 140 |
| Working surface: | 790 x 590 mm |
