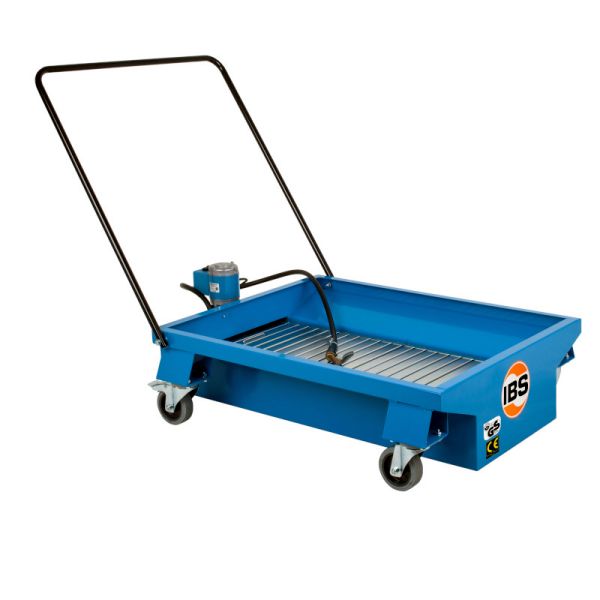

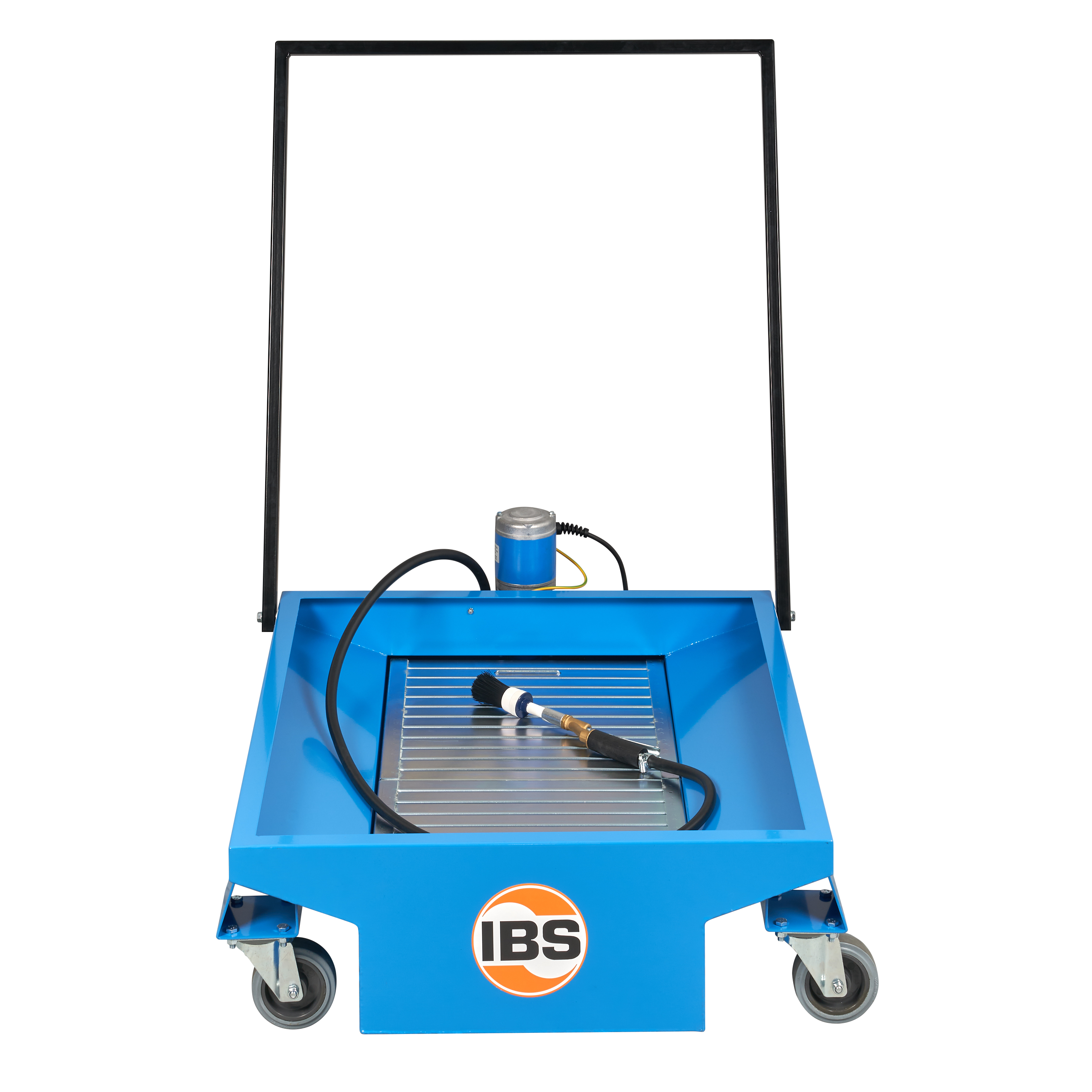

IBS-Parts Cleaning DeviceType A
Flat unit, mobile with 4 swivel castors, for mobile use for cleaning directly on the vehicle.
Description
Description
The IBS parts cleaning device type A was specially developed for manual brush cleaning of oil and grease contaminated parts, with cold cleaner (petroleum-based hydrocarbon mixtures).
This device in flat and mobile design, is equipped with 4 swivel castors and thus ideally suited for mobile use (for example directly on the vehicle for axle cleaning).
With a working surface (850 x 390) and a load capacity of up to 100 kg, this brush wash stand is suitable for cleaning heavy parts.

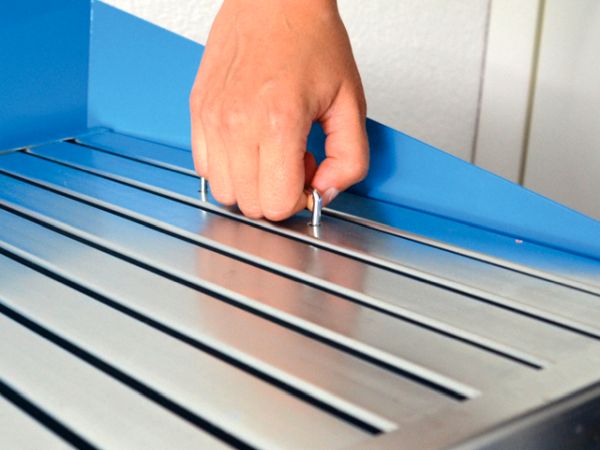

The sturdy powder-coated sheet steel construction and the robust galvanised slatted grate guarantee a long service life.The lowered drain, as well as the drain slopes, ensure that everything flows back into the barrel and the cleaner cannot overflow.
The convenient and safe foot switch technology is user-friendly and easy to operate.
The unique IBS special pump is the heart of the IBS parts cleaning units and is designed for use in IBS parts cleaning units. The pump works self-priming, pressureless and is absolutely trouble-free and maintenance-free.
Technical data
| Connection: | 230 V, 50 Hz |
|---|---|
| External dimensions WxDxH: | 1000 x 750 x 356 mm |
| Load capacity: | 100 kg |
| Weight: | 31 |
| Working height: | / |
| Working surface: | 850 x 390 |
| suitable container: | 35 l max. |
Areas of application
Applications
Thanks to its flat and mobile design, this robust special device from our own production is ideally suited for cleaning axles directly on the vehicle.
Function

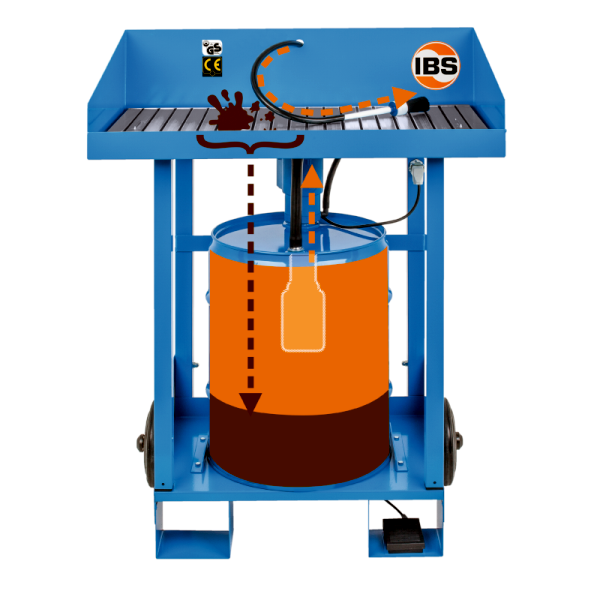

IBS circulation principle
By operating the foot switch, the IBS special pump delivers the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).
The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.
During the manual cleaning process, fluid constantly flows in and the contaminated fluid flows back into the barrel.
In the barrel, the cleaning fluid is separated from the cleaning fluid by a hose.
In the barrel, the entrained foreign substances separate themselves from the cleaner and settle at the bottom of the barrel. Since the pump tube is mounted above the bottom of the barrel, the pump always sucks in clean special cleaner.
Thanks to this self-cleaning system, the barrel is always clean.
This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period of time (6 to 12 months).
The cleaner is replaced by simply changing the drum. This functional principle saves resources, is sustainable, and saves costs and energy.
Advantages
Advantages
- Saving time and operating costs, as heating of the cleaner is not necessary
- Robust and stable construction with a long service life
- by using the cleaner several times, you save operating costs and protect the environment at the same time
similar products

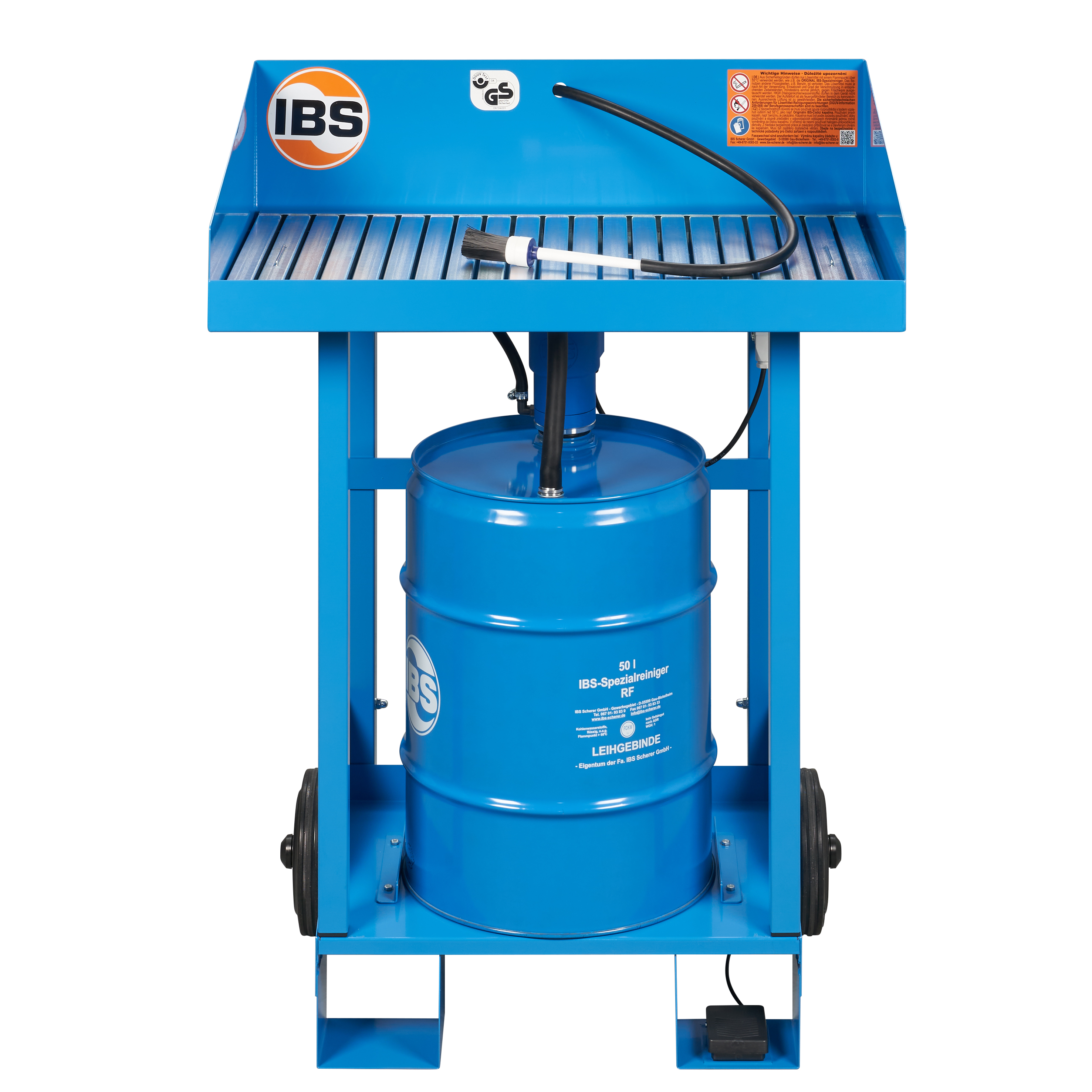

Description The IBS parts cleaning device type F2 was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This mobile device with wheels (sack truck principle) is suitable for mobile use in changing locations. With a medium-sized work surface (790 x 490 mm), a working height of 920 mm and a load capacity of up to 100 kg, this brush washer is suitable for cleaning medium-sized and heavier parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type F/F2 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

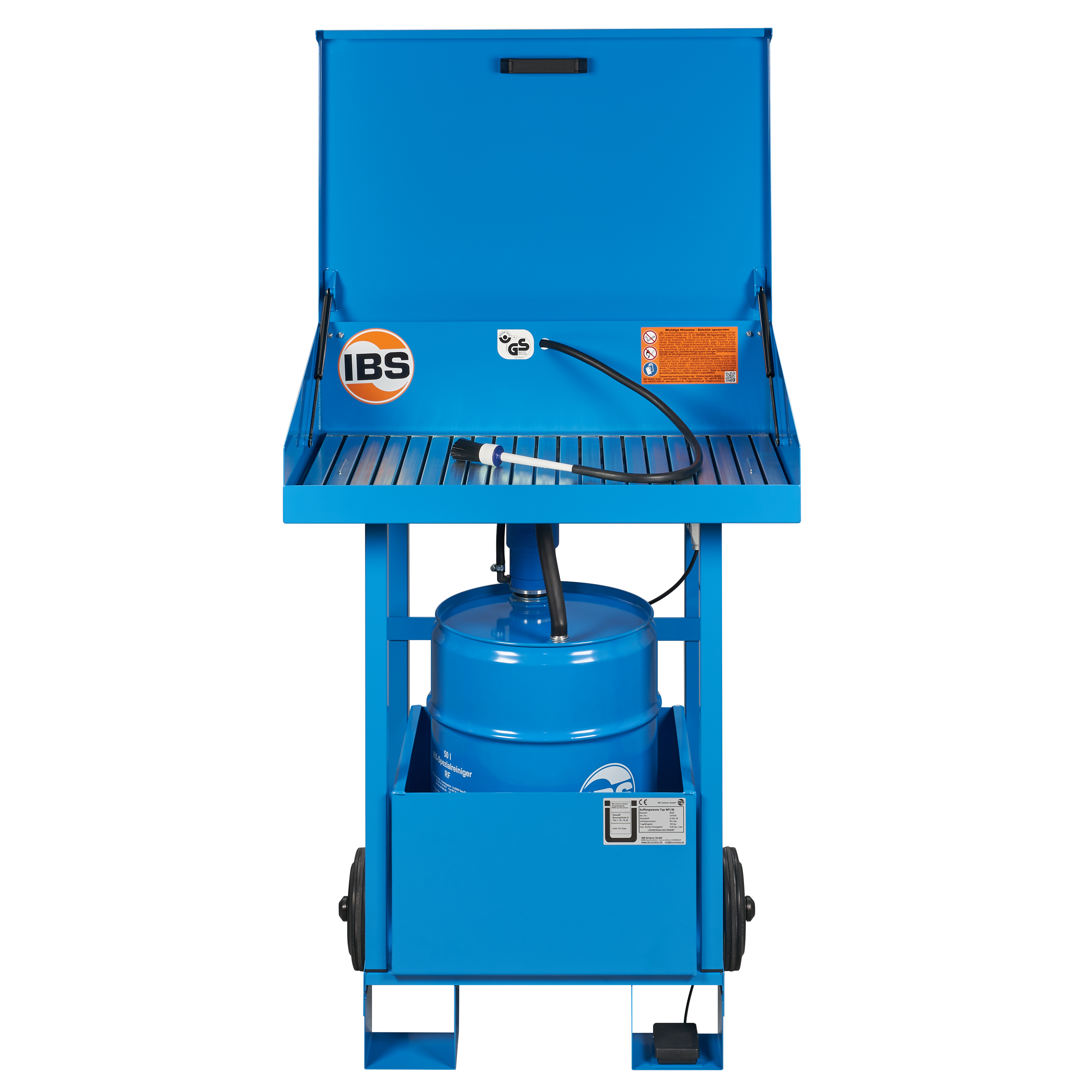

Description The IBS parts cleaning device type F2-D was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This mobile device with wheels (sack truck principle) and lid is suitable for mobile use in changing locations. With a medium-sized work surface (790 x 490 mm), a working height of 920 mm and a load capacity of up to 100 kg, this brush washbasin is suitable for cleaning medium-sized and heavier parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type F/F2 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

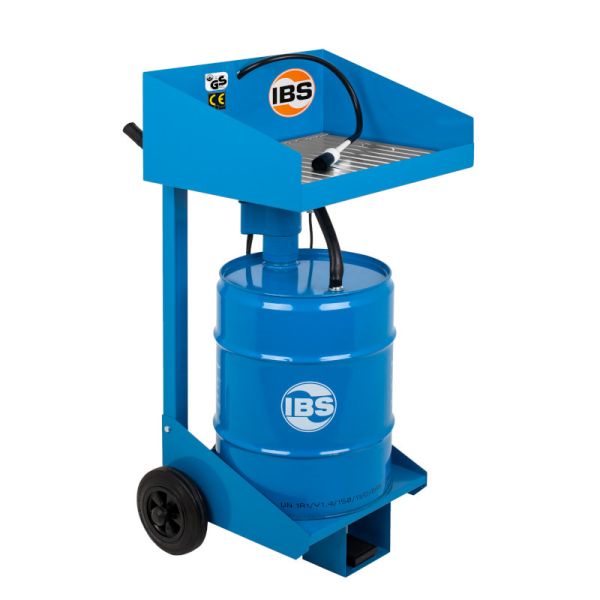

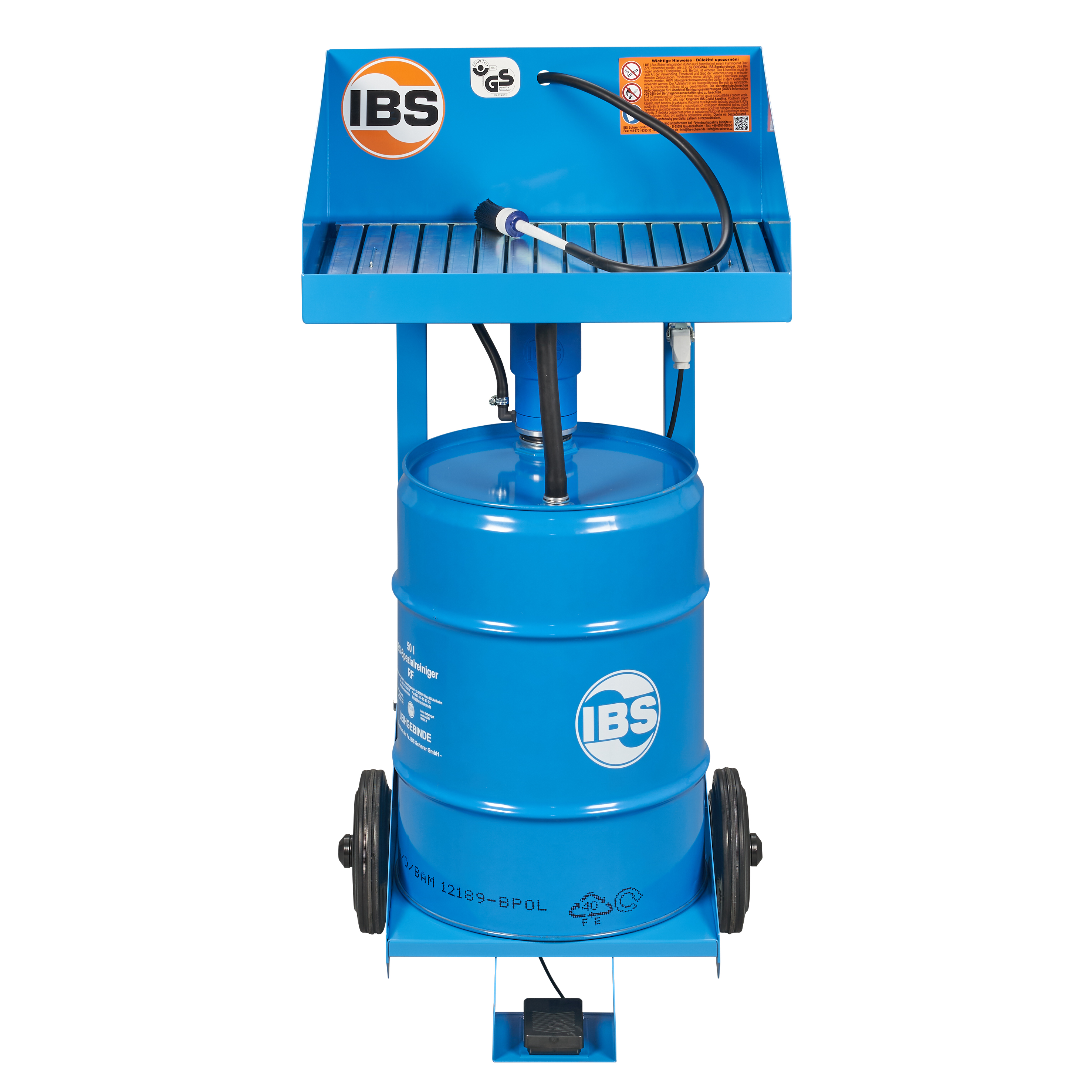

Description The IBS parts cleaning device type F was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This smaller mobile device with wheels (sack truck principle) is suitable for mobile use in changing locations. With a work surface (560 x 430 mm), a working height of 920 mm and a load capacity of up to 40 kg, this brush washing table is suitable for cleaning light and small parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type F/F2 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

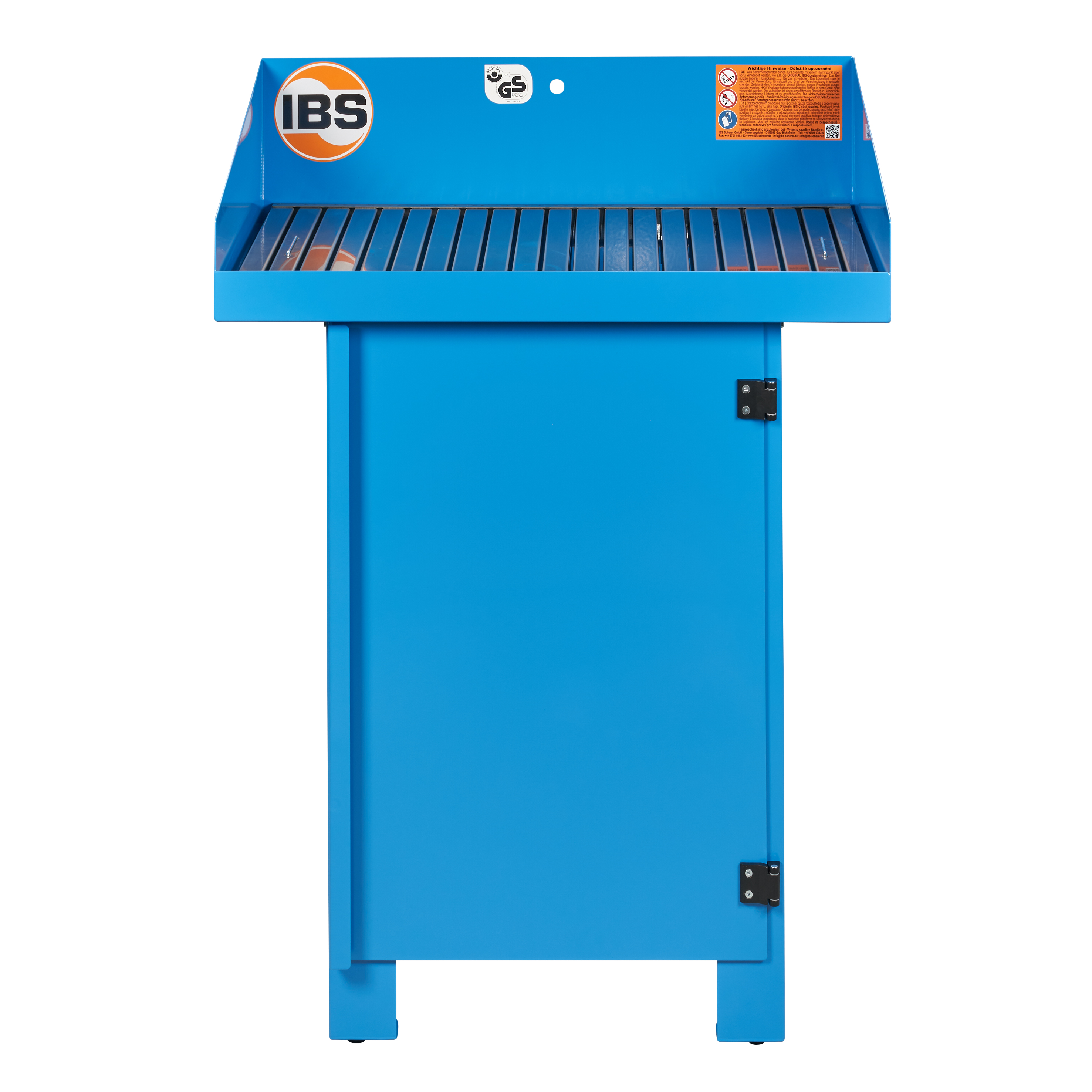

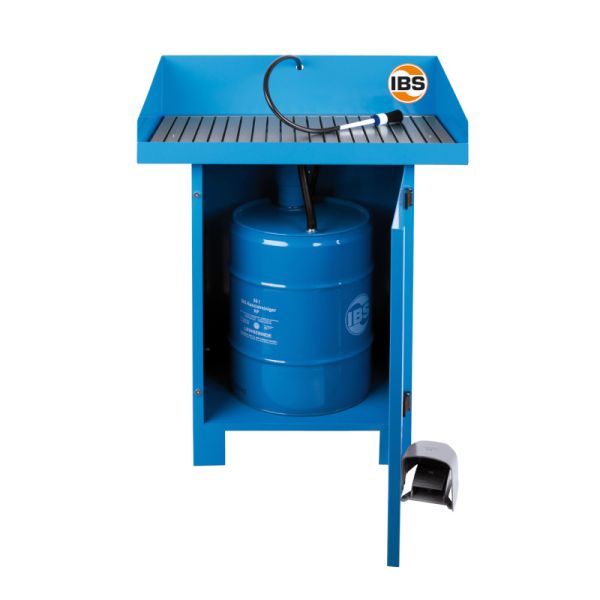

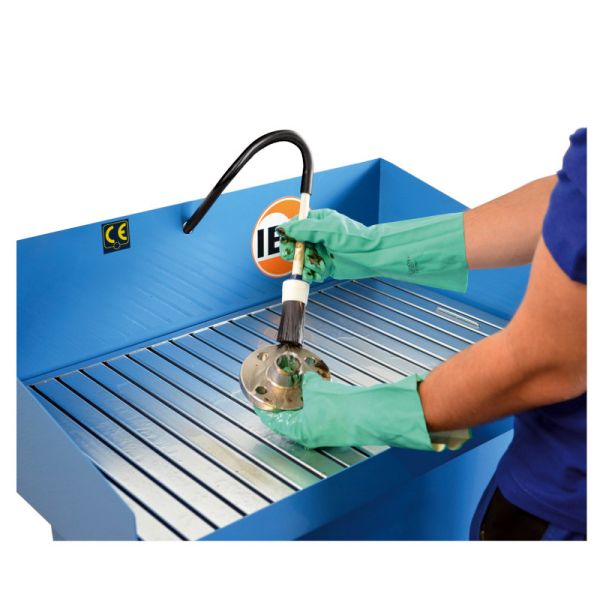

Description The IBS parts cleaning device type G-50-I was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This closed industrial design with an ergonomic workbench height (895 mm) has a work surface of 790 x 490 mm. Thanks to its stable and compact design, this brush washbasin is suitable for cleaning large and medium-heavy parts weighing up to 150 kg. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type G-50 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

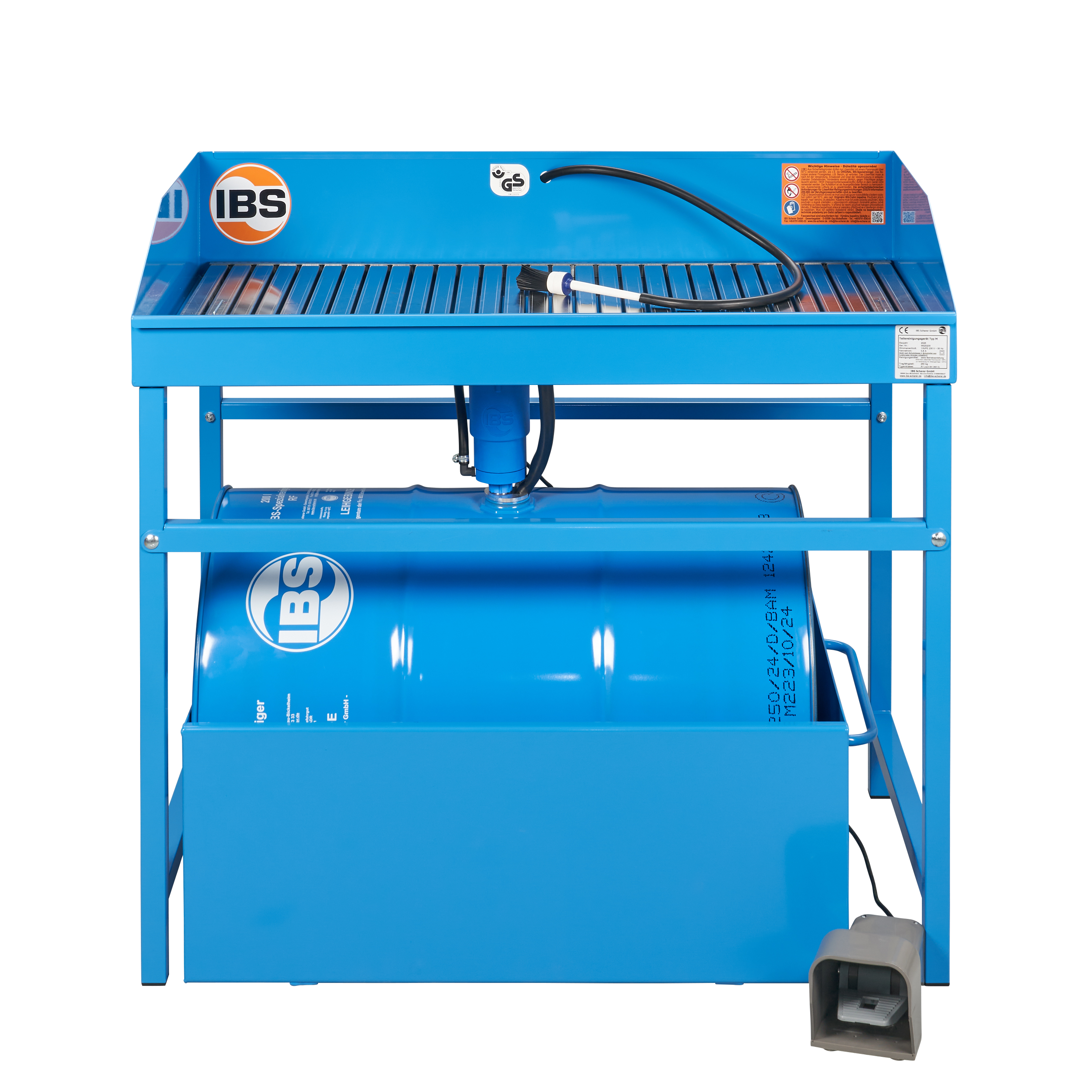

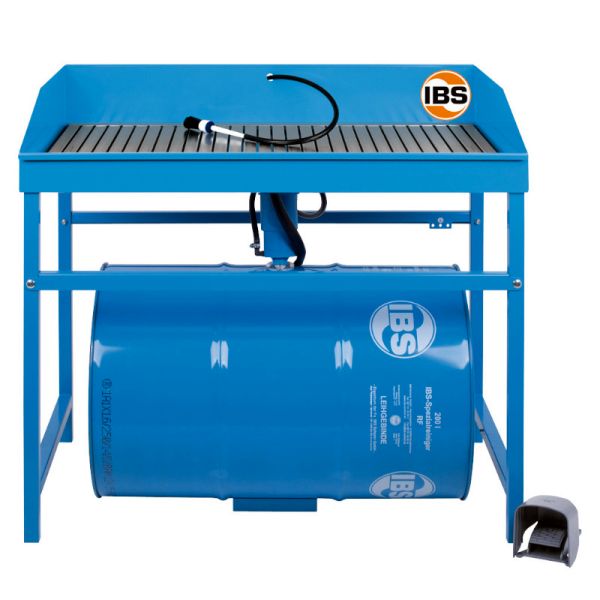

Description The IBS parts cleaning device type M was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This industrial version with ergonomic workbench height (870 mm) is characterised by its large work surface (1135 x 660 mm) and high load capacity of up to 250 kg. This makes this brush washbasin ideal for cleaning large and heavy parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life. The deep-set drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type M/MD is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

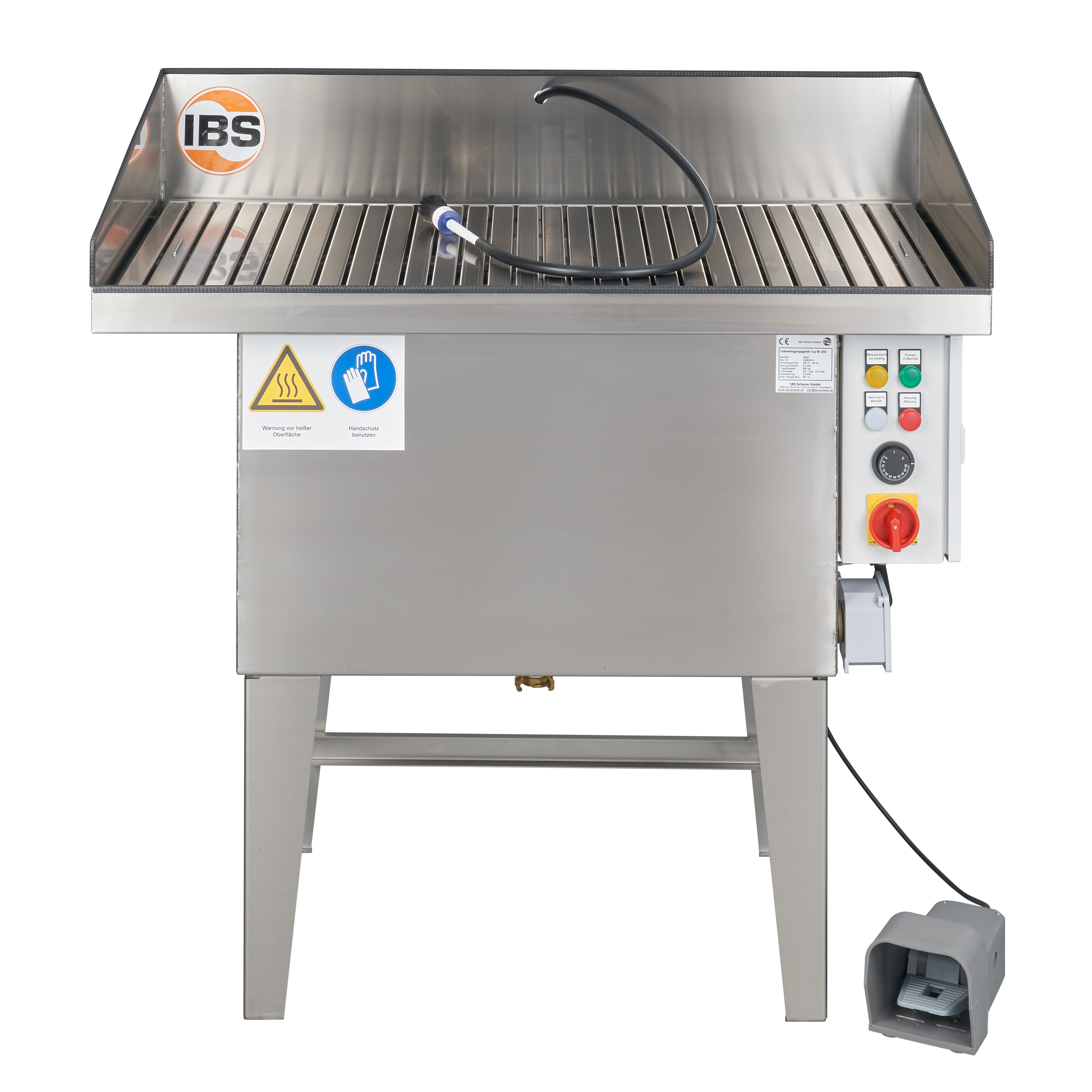

Description The IBS parts cleaning device type W-250 was specially developed for manual brush cleaning, with heating, of parts contaminated with oil and grease. The device is operated with neutral or alkaline water-based cleaning agents.This workshop version, with a working height of 929 mm, has a bath capacity of 45 to max. 100 litres and a large work surface of 1135 x 660 mm. With a load capacity of up to 250 kg, this brush washbasin is ideal for cleaning large and heavy parts. The sturdy stainless steel construction and the robust galvanised slatted grating guarantee a long service life. FunctionBy pressing the foot switch, the cleaning fluid flows through the hollow brush and the parts soiled with oil and grease can be easily brushed off. Can also be used as an immersion bath. The parts to be cleaned can be placed in the tank with liquid by simply opening the upper work surface. The complete IBS pump set type W-100/W-250 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications Water-based cleaning agents

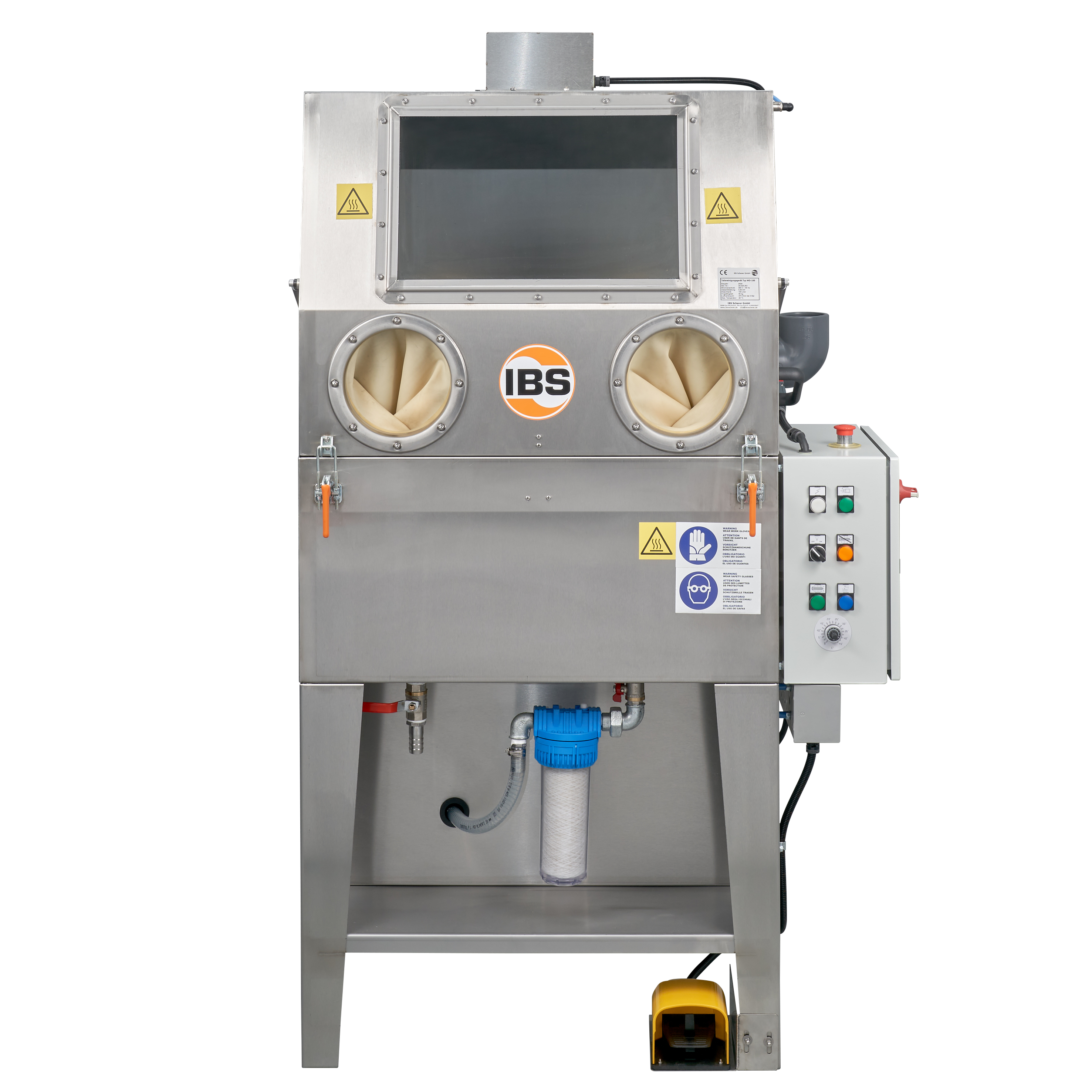

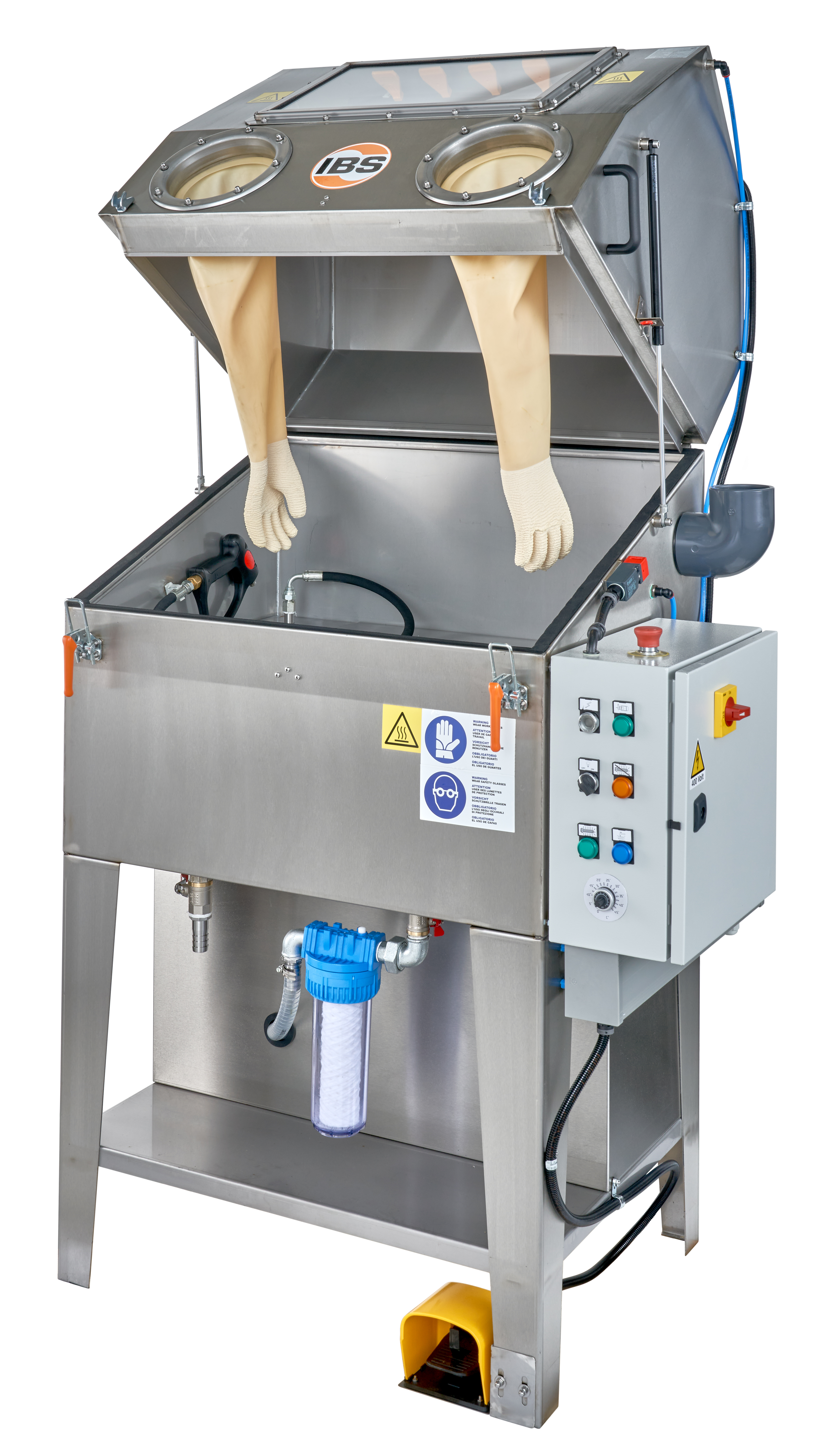

Description of the The IBS parts cleaning device type WD-100 was specially developed for manual cleaning of small parts contaminated with oil and grease using the high-pressure spraying method. The robust stainless steel design is operated with neutral or alkaline water-based cleaning agents. The bath in the tank is simply filled with cleaning agent after heating to operating temperature (20 to max. 45°C). By pressing the foot switch, the cleaning fluid flows through the spray gun and the parts contaminated with oil and grease can be easily blasted off. Advantages The high-pressure spray gun with nozzle ensures user-friendly handling (spraying method)The washing solution is heated up to 45°C in an energy-efficient mannerSteam outlet and air nozzles keep the large viewing window clean and free of spray waterPowerful LED light ensures optimum lighting and a clear view of the interiorThe temperature regulator allows individual adjustment to every cleaning taskWith low water cut-out for optimum protectionThe fine filter catches coarse dirt and is easy to replaceFurther information IBS brush washbasin IBS disposal circuit Environment and safety Certifications Water-based cleaning agents

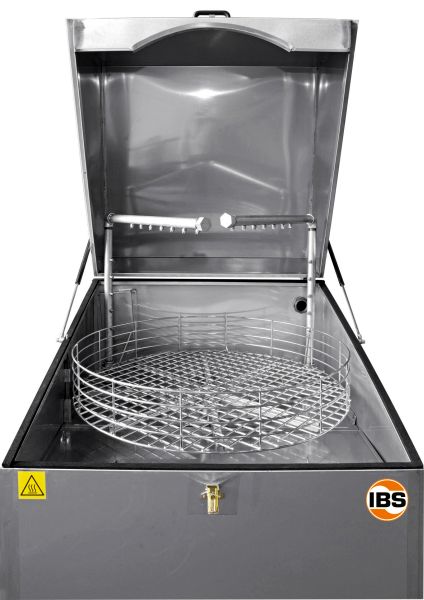

The soiled items to be washed are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the appliance is switched on and the suds are heated in the tank. When the appliance is closed, the basket rotates around its own axis at a constant speed. The pump units suck the suds out of the wash tank and convey them through 6 stainless steel nozzle pipes with overlapping flat-jet nozzles. The items to be cleaned are intensively blasted from all sides with the hot suds while the motor-driven basket rotates evenly. When the cleaning process is finished, the unit switches off automatically. Advantages 2 pumps arranged horizontally 6 three-dimensional nozzle pipes made of stainless steel Robust stainless steel construction additional small parts cleaning basket made of stainless steel (Ø 170 mm) rotating washing basket made of stainless steel, V-belt drive via separate motor vapour extractor Stainless steel sieve plate with filter basket above the wash tank Low-water cut-out Individually height-adjustable feet
