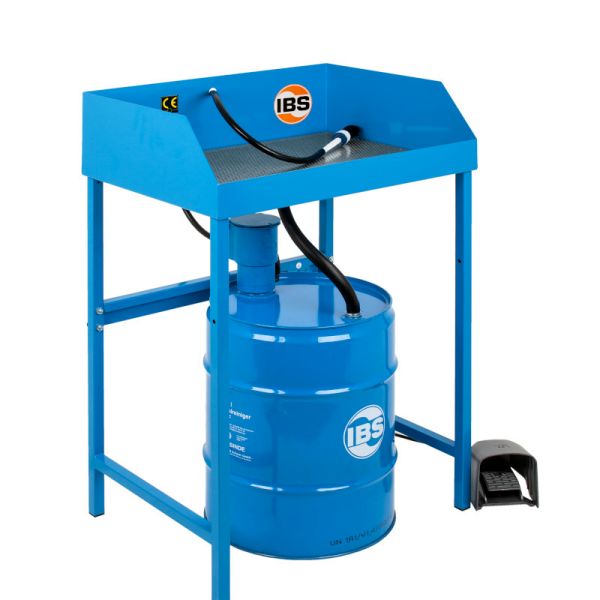

IBS-Parts Cleaning Device Type BK-50
Cost-effective and space-saving workshop version. For cleaning small parts up to 50 kg in the smallest space.
Description
Description
The IBS parts cleaning device type BK-50 was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures).
This cost-effective workshop version in a space-saving compact design has a working height of 820 mm. With a work surface of 646 x 465 mm and a load capacity of up to 50 kg, this brush washbasin can also be used to clean bulky and medium-heavy parts in the smallest of spaces.
The sturdy powder-coated sheet steel construction and the robust perforated plate guarantee a long service life. The lower drain and the sloping drain ensure that everything flows back into the tank and the cleaner cannot overflow.
The convenient and safe foot switch technology is user-friendly and easy to operate.
The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free.
The complete IBS pump set type BK-50 is included in the scope of delivery
Further information
Technical data
| Connection: | 230 V, 50 Hz |
|---|---|
| External dimensions WxDxH: | 656 x 475 x 1005 mm |
| Load capacity: | 50 kg |
| Weight: | 15 |
| Working height: | 820 mm |
| Working surface: | 646 x 465 mm |
| suitable container: | 50 l |
Areas of application
For manual cleaning of grease-contaminated metal and plastic components, e.g. in the following areas:
- Industrial parts cleaning and surface degreasing
- Maintenance and repair of production plants, conveyor belts, fittings, pumps, motors and other machine parts
- Repair and maintenance of all types of means of transport, e.g. motor vehicles, trucks and rail vehicles, ground and material handling vehicles, agricultural and construction machinery
Function
IBS circulation principle
By operating the foot switch, the IBS special pump delivers the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).

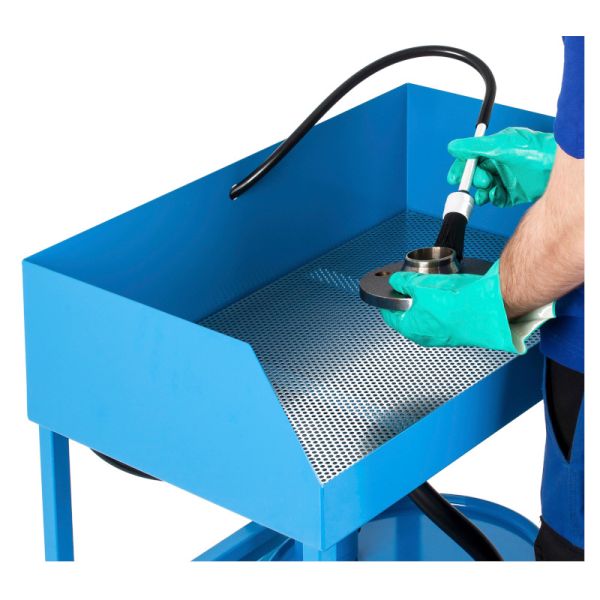

The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.
During the manual cleaning process, fluid constantly flows in and the contaminated fluid flows back into the barrel.
In the barrel, the cleaning fluid is separated from the cleaning fluid by a hose.
In the barrel, the entrained foreign substances separate themselves from the cleaner and settle at the bottom of the barrel. Since the pump tube is mounted above the bottom of the barrel, the pump always sucks in clean special cleaner.
Thanks to this self-cleaning system, the barrel is always clean.
This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period of time (6 to 12 months).
The cleaner is replaced by simply changing the drum. This functional principle saves resources, is sustainable, and saves costs and energy.
Advantages
Advantages
- Saving time and operating costs, as heating of the cleaner is not necessary
- Robust and stable construction with a long service life
- by using the cleaner several times, you save operating costs and protect the environment at the same time
Spare parts
The IBS spare parts package guarantees perfect function and ensures a long service life. The original spare parts are perfectly matched to the IBS parts cleaning devices and guarantee optimum function. The IBS spare parts pack consists of IBS cleaning brush, standard - fine bristles 0.3 mm IBS cleaning brush, standard - coarse bristles 0.5 mm IBS return hose NW 20 IBS brush hose (1.5 m) Hose clamp (large) 16-25/9 (suitable for all pump sets; except type K, type A, W series) Hose clamp (small) 8-16/9 (suitable for all pump sets)
IBS special pump type BK-50 is a self-priming pump and was specially developed for use in the IBS parts cleaning device. The pump has a low flow rate and does not build up pressure, thus fulfilling all requirements of the prescribed standards (EN 12921). The unique suction system and the magnetic slip clutch, ensure maintenance-free operation and a long service life. When using IBS special cleaner, we grant an extended factory warranty of 3 years.
The IBS brush hose is a special design made of solvent-resistant Perbunan. For use in the parts cleaning device, the cleaning brush (hollow brush) is placed on the brush hose.The durable and resistant brush hose has a high chemical resistance to mineral oils, greases and hydrocarbons and is ideal for use with IBS special cleaning agents (cold cleaners).
The IBS special brush is a hollow brush with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush with fine bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
Der IBS Spezialpinsel ist ein Hohlpinsel mit Naturhaar Borsten, der speziell für den Einsatz im IBS-Teilereinigungsgerät entwickelt wurde. Der Stiel ist konisch geformt und wird auf den Pinselschlauch gesteckt. Die Borsten sind aus Naturhaar. Der Reinigungspinsel eignet sich für alle Standard Reinigungsanwendnungen mit dem Teilereinigungsgerät.
The IBS special brush is a hollow brush, small, with fine bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for light contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for coarse contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, long, with coarse bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with natural hair bristles, which was specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of natural hair. The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, small, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
