IBS-Parts Cleaning Device Type MD
Industrial version at workbench height with lid and large work surface, for cleaning heavy and large parts (up to 250 kg).
Description
Description
The IBS parts cleaning device type MD was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures).
This industrial version with lid, at an ergonomic workbench height (870 mm), is characterised by its large work surface (1135 x 660 mm) and high load capacity of up to 250 kg. This makes this brush washbasin ideal for cleaning large and heavy parts.
The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the bowl and the cleaner cannot overflow.
The convenient and safe foot switch technology is user-friendly and easy to operate.
The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free.
The complete IBS pump set type M/MD is included in the scope of delivery
Further information
Technical data
| Connection: | 230 V, 50 Hz |
|---|---|
| External dimensions WxDxH: | 1165 x 695 x 1055 / 1735 mm |
| Load capacity: | 250 kg |
| Weight: | 60 |
| Working height: | 870 mm |
| Working surface: | 1135 x 660 mm |
| suitable container: | 200 l |
Video
1Areas of application
Application areas
For the manual cleaning of grease-soiled metal and plastic components, including in the following areas:
- Industrial parts cleaning and surface degreasing
- Maintenance and servicing of production systems, conveyor belts, fittings, pumps, motors and other machine parts
- Repair and maintenance of means of transport (motor vehicles, lorries and rail vehicles, ground and transport vehicles, agricultural and construction machinery
Function

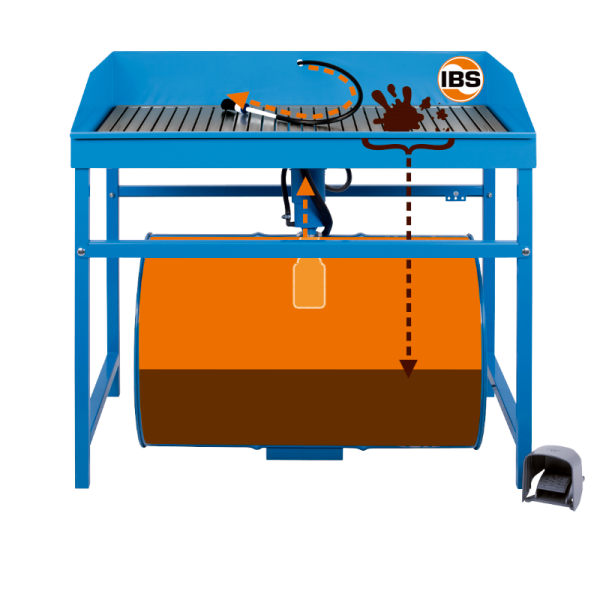

IBS circulation principle
By pressing the foot switch, the special IBS pump feeds the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).
The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.
During the manual cleaning process, the fluid is constantly replenished and the contaminated fluid flows back into the drum.
In the drum, the foreign substances carried in separate themselves from the cleaner and settle at the bottom of the drum. As the pump pipe is fitted above the base of the drum, the pump always draws in clean special cleaner.
This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period (6 to 12 months).
The cleaner is replaced by simply changing the drum. This functional principle conserves resources, is sustainable and saves costs and energy.
Advantages
Advantages
- Saves time and operating costs as it is not necessary to heat the cleaner
- Rugged and stable design with a long service life
- Save operating costs and protect the environment
Spare parts
The IBS spare parts package guarantees perfect function and ensures a long service life. The original spare parts are perfectly matched to the IBS parts cleaning devices and guarantee optimum function. The IBS spare parts pack consists of IBS cleaning brush, standard - fine bristles 0.3 mm IBS cleaning brush, standard - coarse bristles 0.5 mm IBS return hose NW 20 IBS brush hose (1.5 m) Hose clamp (large) 16-25/9 (suitable for all pump sets; except type K, type A, W series) Hose clamp (small) 8-16/9 (suitable for all pump sets)
The IBS brush hose is a special design made of solvent-resistant Perbunan. For use in the parts cleaning device, the cleaning brush (hollow brush) is placed on the brush hose.The durable and resistant brush hose has a high chemical resistance to mineral oils, greases and hydrocarbons and is ideal for use with IBS special cleaning agents (cold cleaners).
The IBS special brush is a hollow brush with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush with fine bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
Der IBS Spezialpinsel ist ein Hohlpinsel mit Naturhaar Borsten, der speziell für den Einsatz im IBS-Teilereinigungsgerät entwickelt wurde. Der Stiel ist konisch geformt und wird auf den Pinselschlauch gesteckt. Die Borsten sind aus Naturhaar. Der Reinigungspinsel eignet sich für alle Standard Reinigungsanwendnungen mit dem Teilereinigungsgerät.
The IBS special brush is a hollow brush, small, with fine bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for light contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for coarse contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, long, with coarse bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with natural hair bristles, which was specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of natural hair. The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, small, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
