IBS-Parts Cleaning Device Type KD
Space-saving unit, with lid, for cleaning compact and heavy parts (up to 80 kg).
Description
The IBS parts cleaning device type KD was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures).

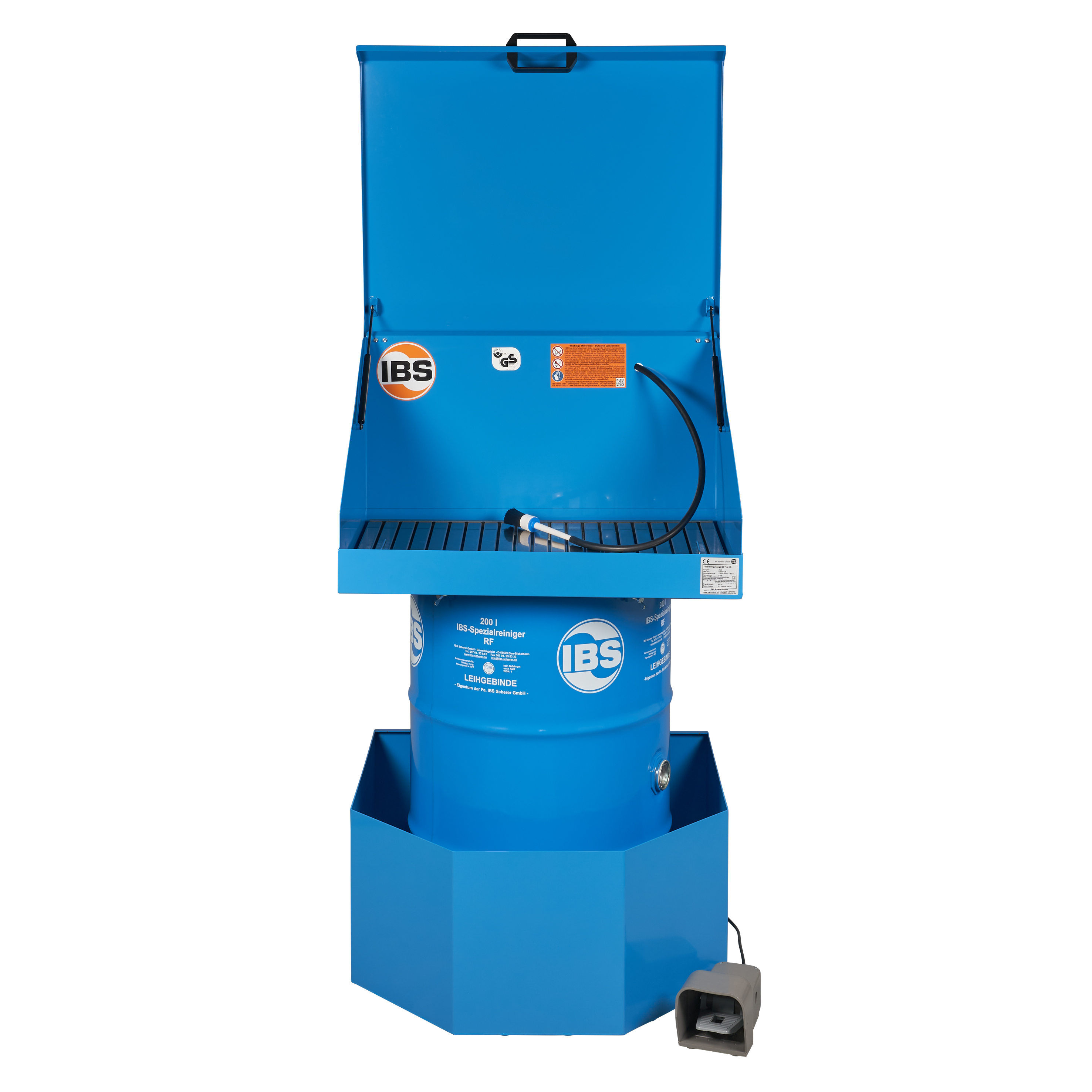

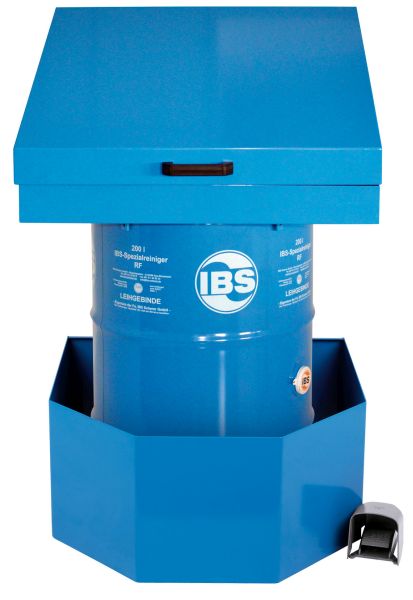

This version with lid, small footprint and a working height of 922 mm is mounted directly on a 200 litre drum. With a work surface of 790 x 540 mm and a load capacity of up to 80 kg, this brush washbasin can be used to clean large and heavy parts.

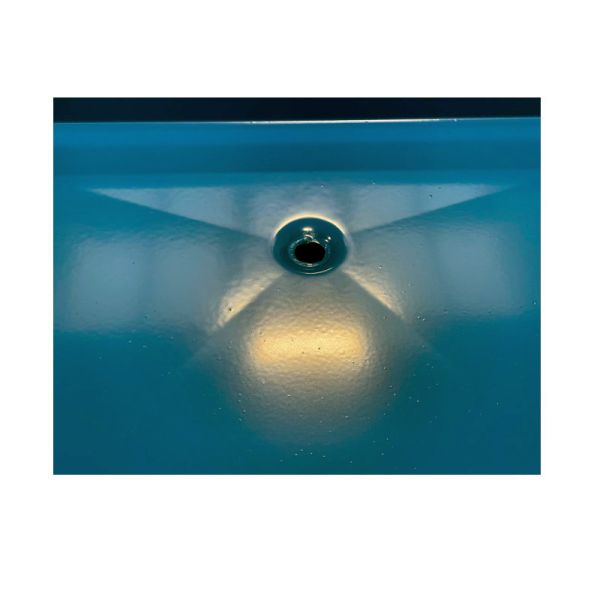

The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow.
The convenient and safe foot switch technology is user-friendly and easy to operate.
The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free.

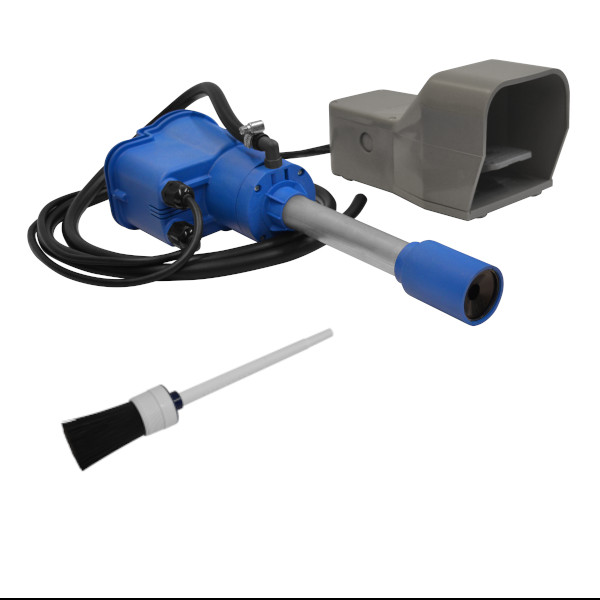

The complete IBS pump set type K/KD is included in the scope of delivery
Further information
| Connection: | 230 V, 50 Hz |
|---|---|
| External dimensions WxDxH: | 812 x 580 x 556 mm |
| Load capacity: | 80 kg |
| Weight: | 34 |
| Working height: | 922 mm |
| Working surface: | 790 x 540 mm |
| suitable container: | 200 l |
Applications
For manual cleaning of grease-contaminated metal and plastic components, e.g. in the following areas:
- Industrial parts cleaning and surface degreasing
- Maintenance and repair of production plants, conveyor belts, fittings, pumps, motors and other machine parts
- Repair and maintenance of all types of means of transport, e.g. motor vehicles, trucks and rail vehicles, ground and material handling vehicles, agricultural and construction machinery
IBS circulation principle
By operating the foot switch, the IBS special pump delivers the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).
The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.
During the manual cleaning process, fluid constantly flows in and the contaminated fluid flows back into the barrel.
In the barrel, the cleaning fluid is separated from the cleaning fluid by a hose.
In the barrel, the entrained foreign substances separate themselves from the cleaner and settle at the bottom of the barrel. Since the pump tube is mounted above the bottom of the barrel, the pump always sucks in clean special cleaner.
Thanks to this self-cleaning system, the barrel is always clean.
This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period of time (6 to 12 months).
The cleaner is replaced by simply changing the drum. This functional principle saves resources, is sustainable, and saves costs and energy.
Advantages
- Rugged & stable construction (Made in Germany) - for cleaning large and heavy parts
- Safety at the workplace - T&Ul;V tested safety
- ergonomic working position, user-friendly and easy to operate thanks to convenient and safe foot switch technology
- Maintenance-free technology, 3-year extended factory warranty on the IBS pump(when using IBS special cleaner)
- Preservation of resources & cost savings due to recirculation of the cleaner
Spare parts

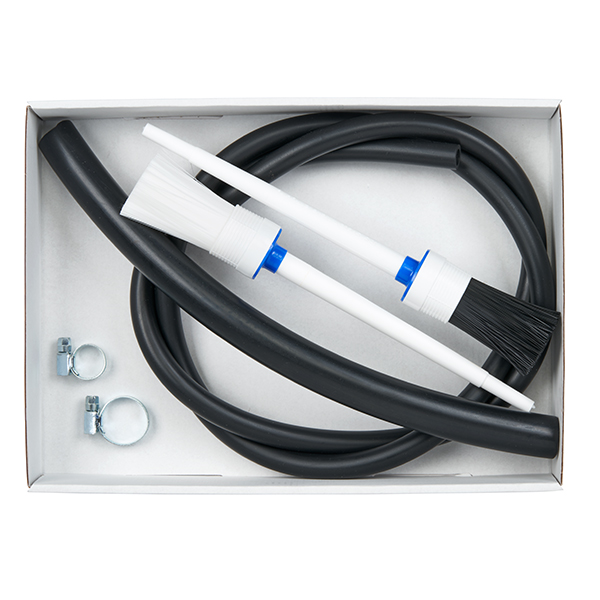

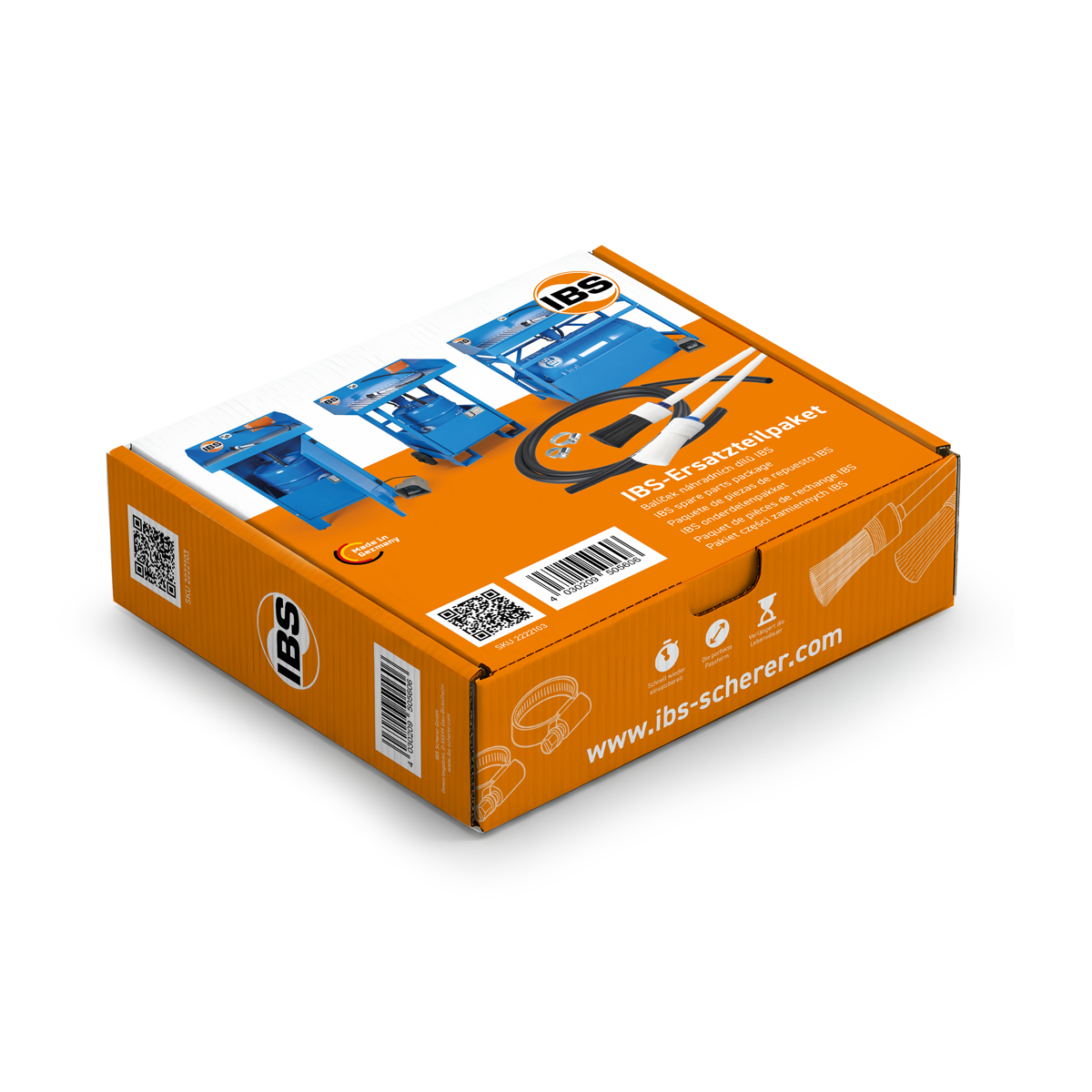

The IBS spare parts package guarantees perfect function and ensures a long service life. The original spare parts are perfectly matched to the IBS parts cleaning devices and guarantee optimum function. The IBS spare parts pack consists of IBS cleaning brush, standard - fine bristles 0.3 mm IBS cleaning brush, standard - coarse bristles 0.5 mm IBS return hose NW 20 IBS brush hose (1.5 m) Hose clamp (large) 16-25/9 (suitable for all pump sets; except type K, type A, W series) Hose clamp (small) 8-16/9 (suitable for all pump sets)

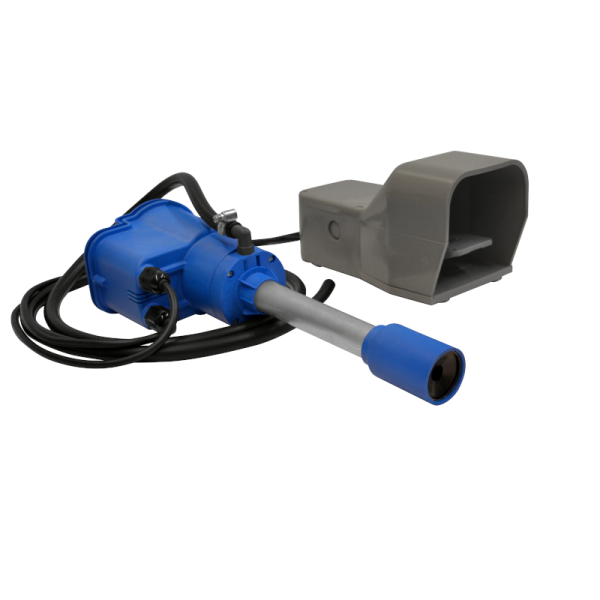

The IBS special pump type K/KP is a self-priming pump and was specially developed for use in the IBS parts cleaning device. The pump has a low flow rate and does not build up pressure, thus fulfilling all requirements of the prescribed standard (EN 12921). The unique suction system and magnetic slip clutch ensure maintenance-free operation and a long service life. When using IBS special cleaner, we grant an extended factory warranty of 3 years. Scope of delivery: IBS special pump IBS foot switch Electric cable with safety plug Brush hose IBS special brush, coarse Hose clamps The pump is completely assembled and ready for immediate use.

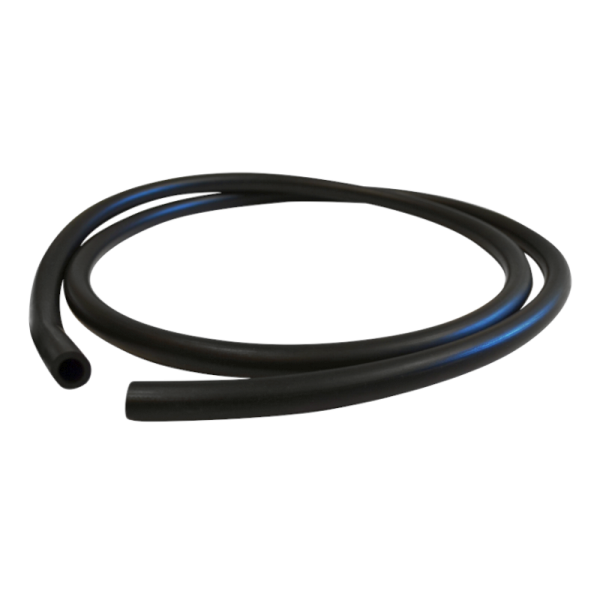

The IBS brush hose is a special design made of solvent-resistant Perbunan. For use in the parts cleaning device, the cleaning brush (hollow brush) is placed on the brush hose.The durable and resistant brush hose has a high chemical resistance to mineral oils, greases and hydrocarbons and is ideal for use with IBS special cleaning agents (cold cleaners).

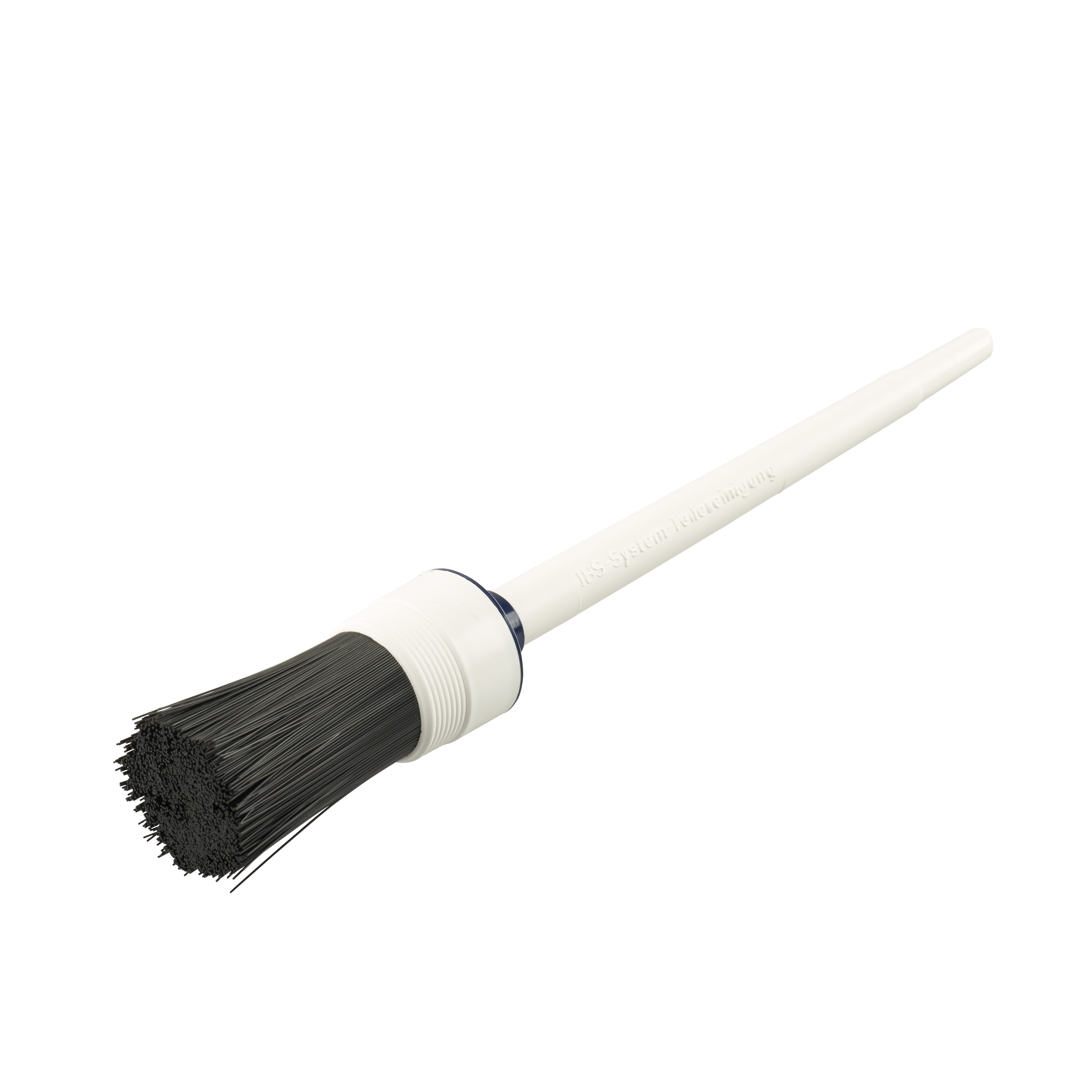

The IBS special brush is a hollow brush with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.

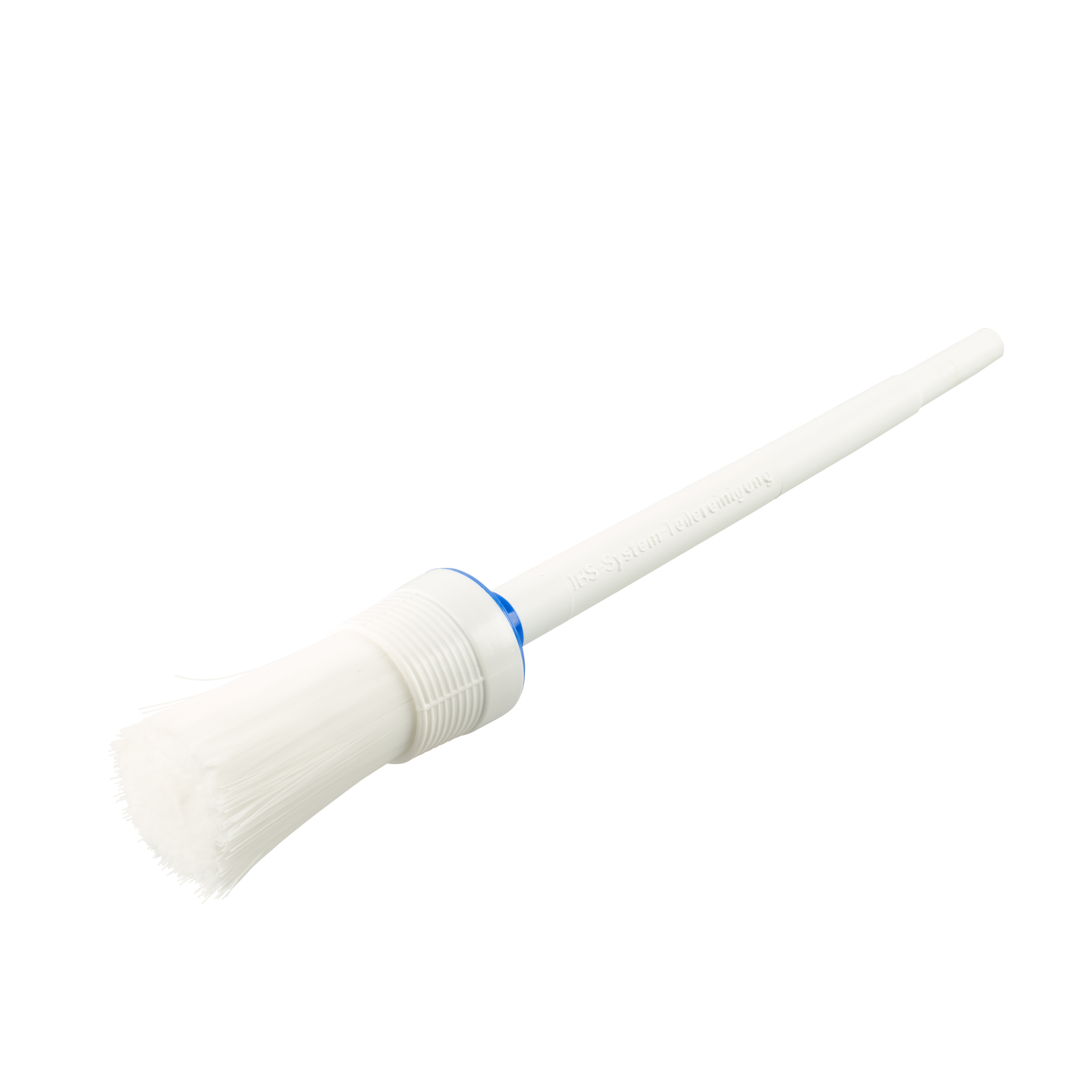

The IBS special brush is a hollow brush with fine bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.

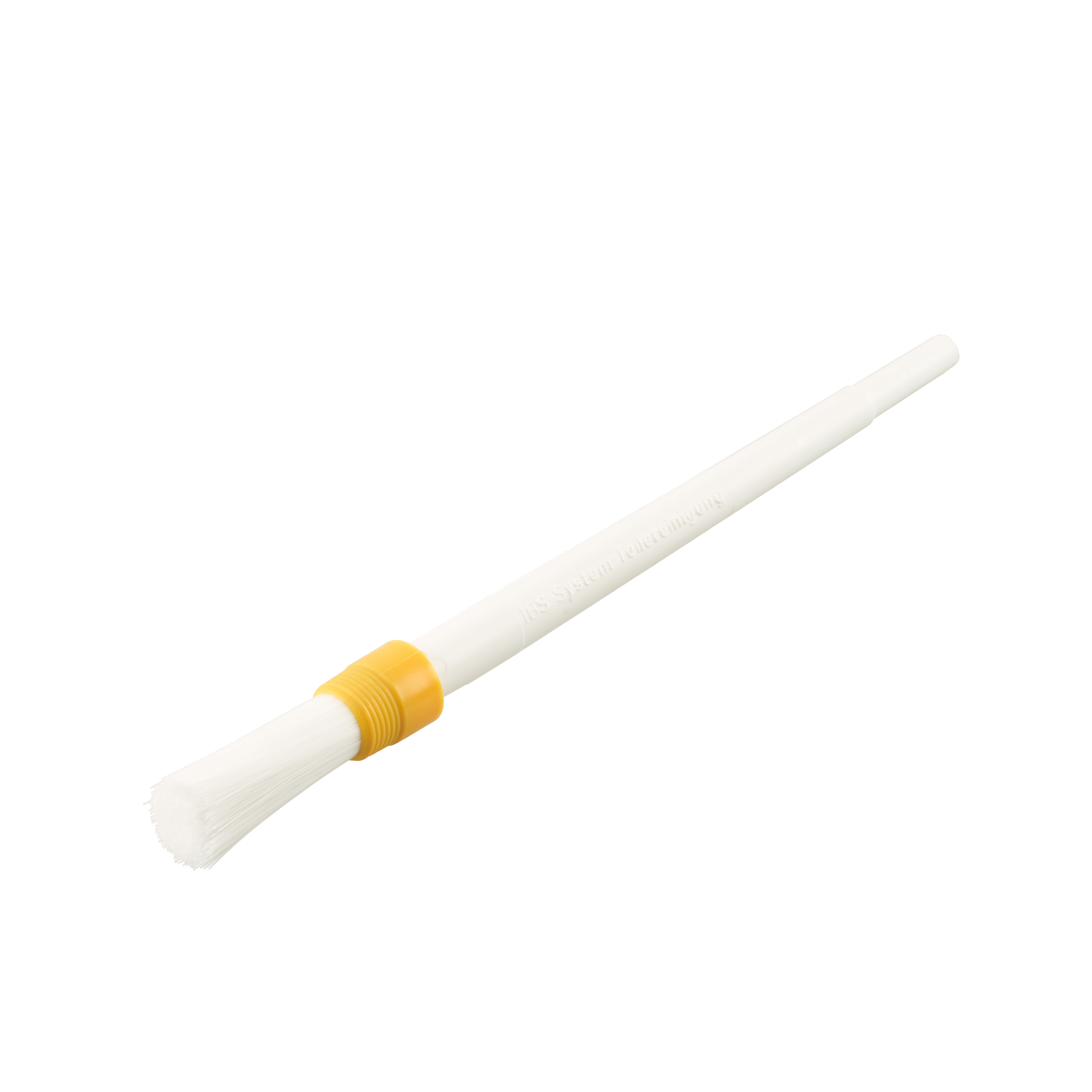

The IBS special brush is a hollow brush, small, with fine bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for light contamination and all standard cleaning applications with the parts cleaning device.

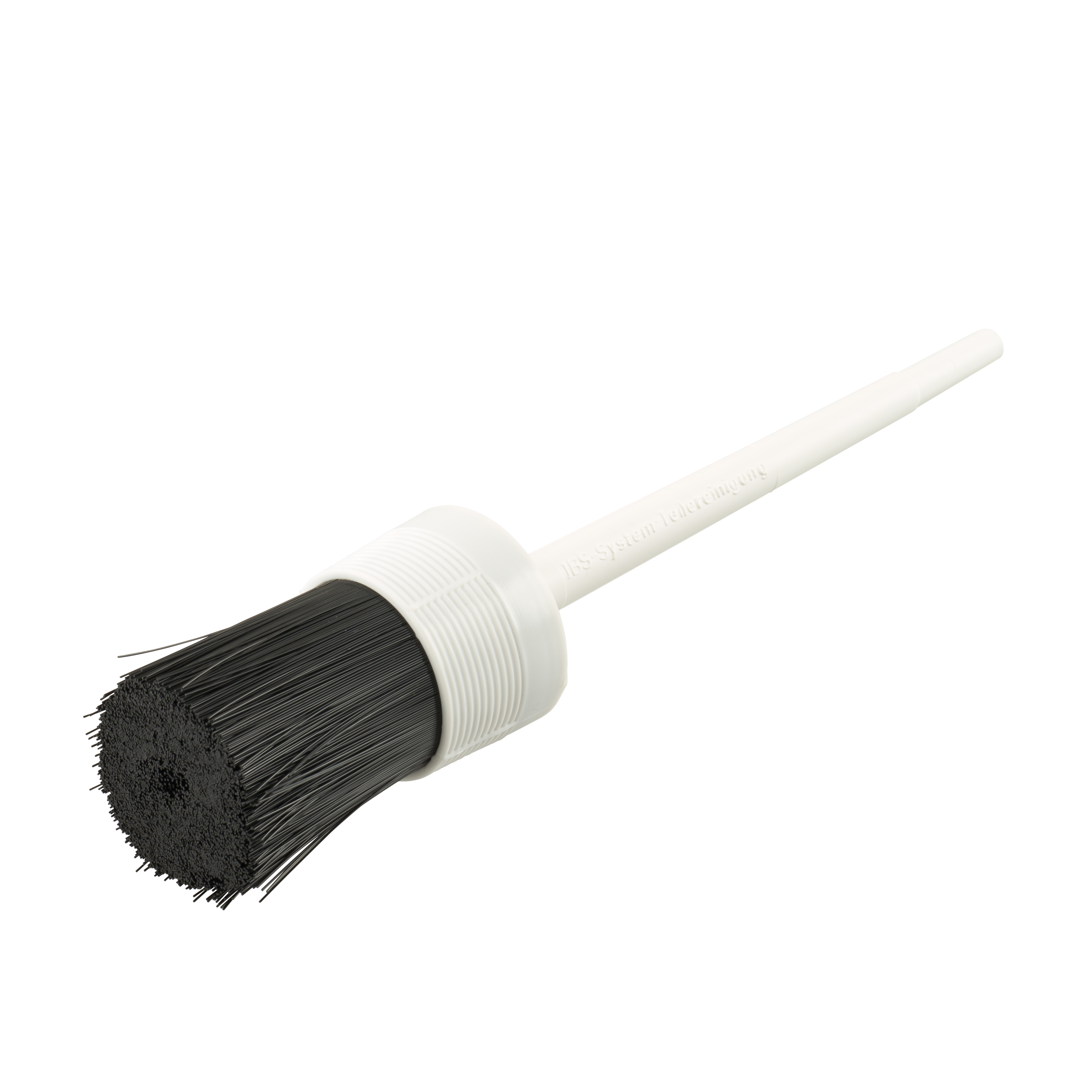

The IBS special brush is a hollow brush, wide, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for coarse contamination and all standard cleaning applications with the parts cleaning device.

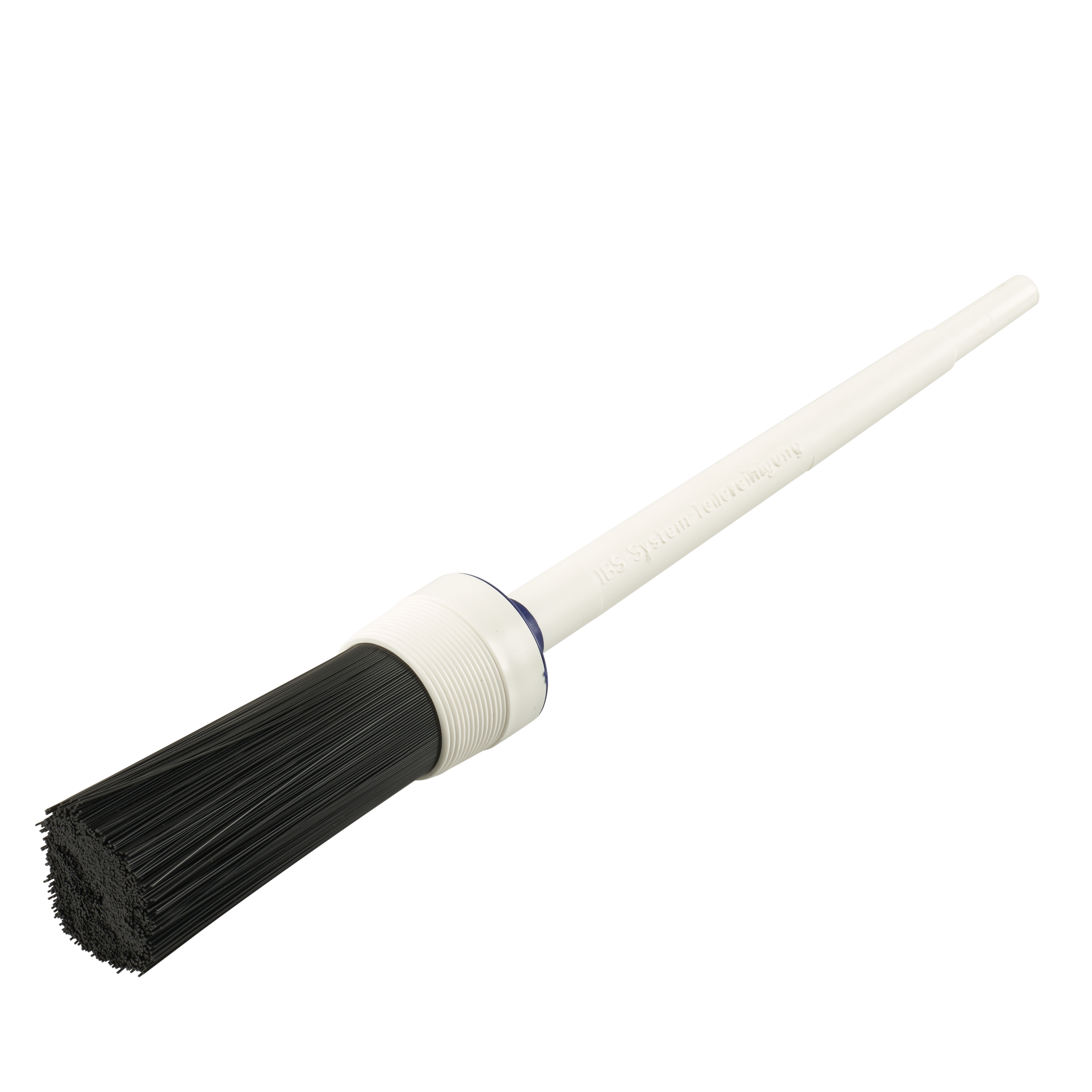

The IBS special brush is a hollow brush, long, with coarse bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.

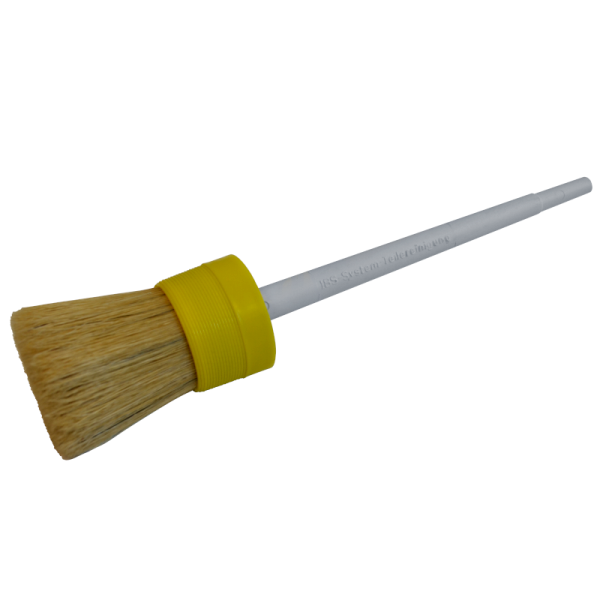

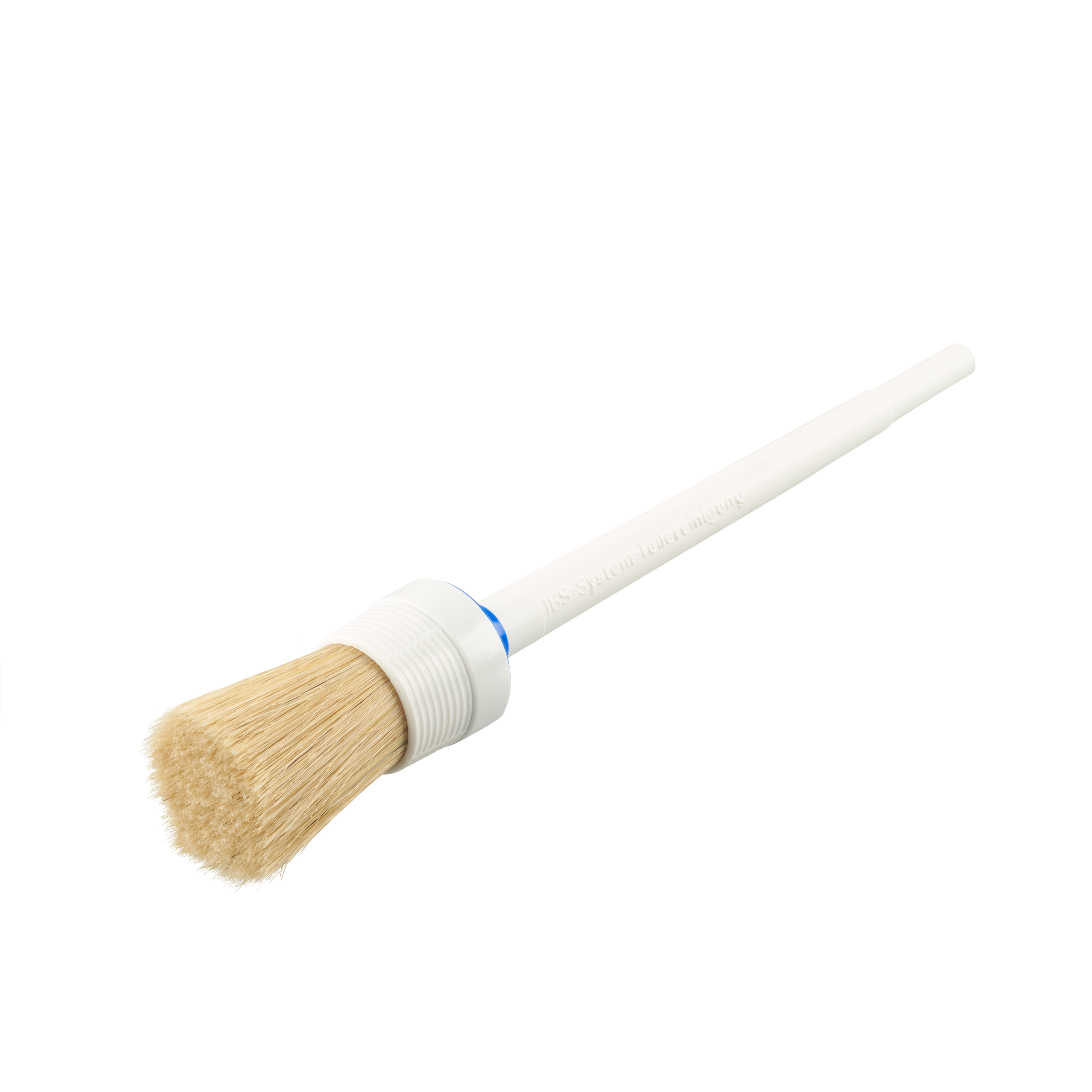

The IBS special brush is a hollow brush, wide, with natural hair bristles, which was specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of natural hair. The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.

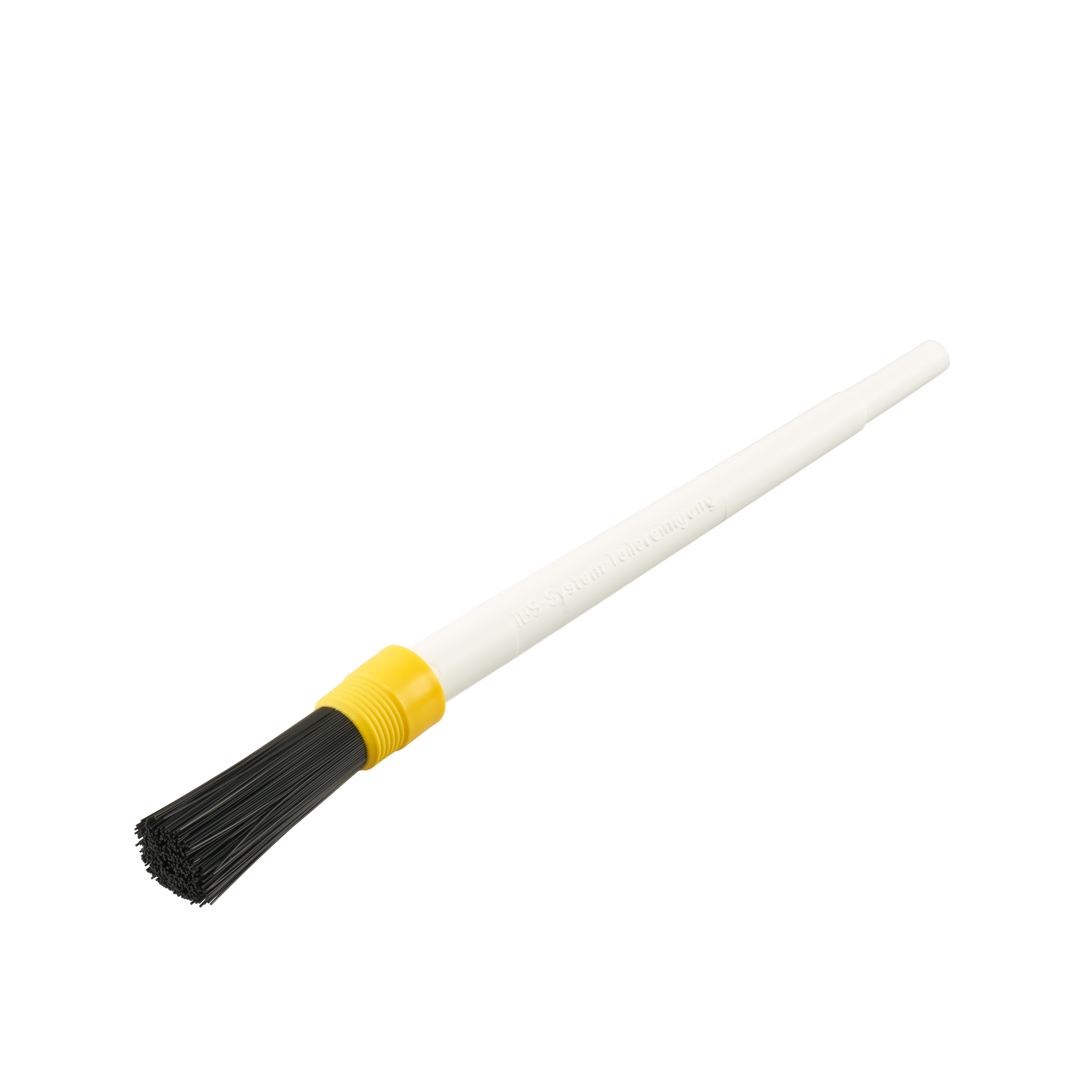

The IBS special brush is a hollow brush, small, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
similar products

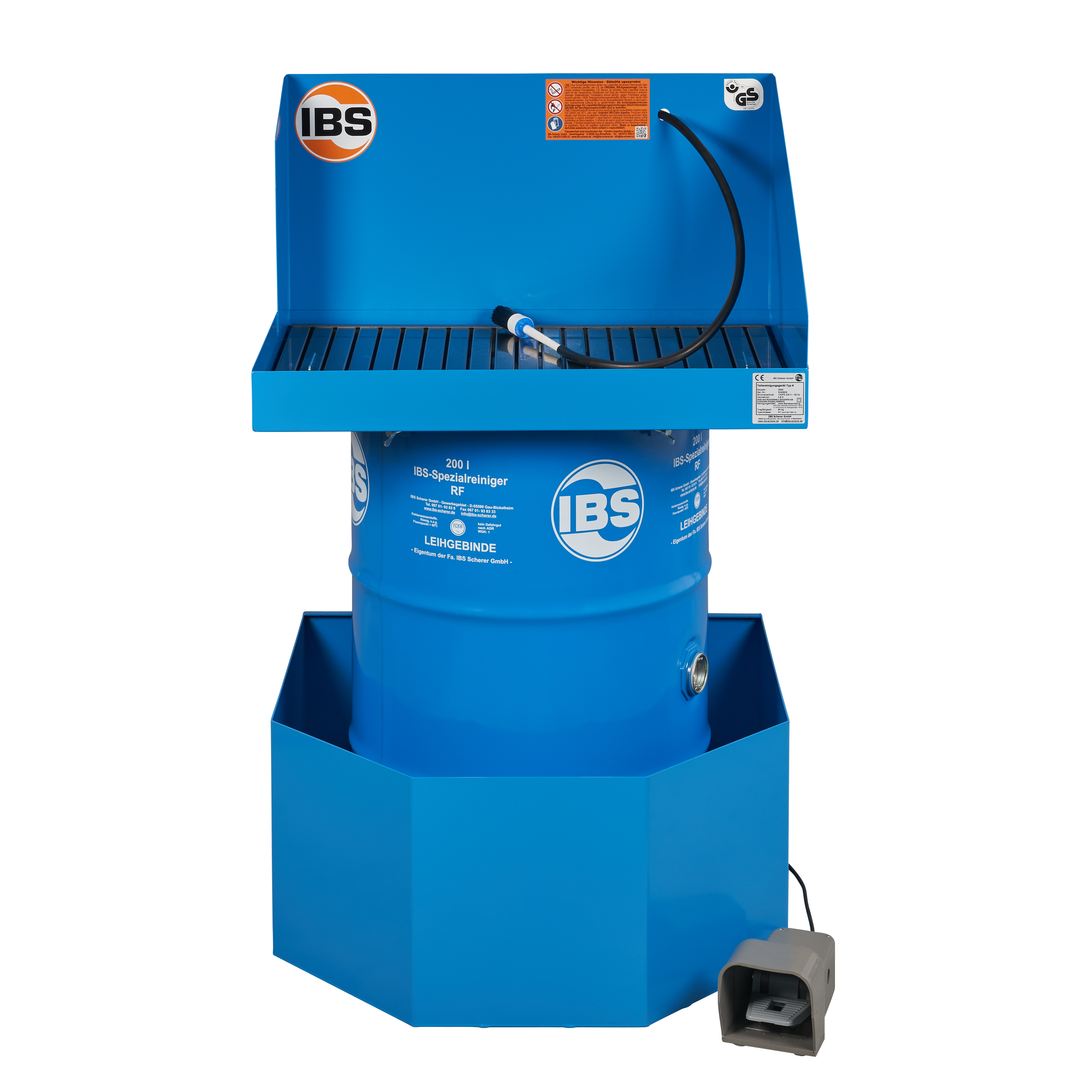

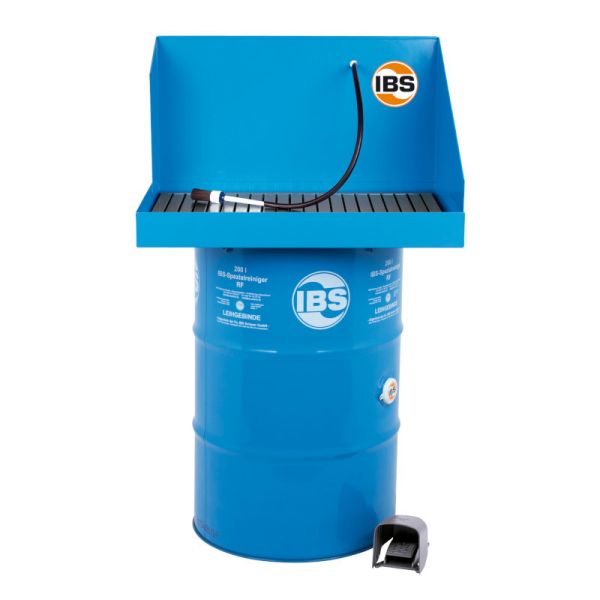

Description The IBS parts cleaning device type K was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This version, with a small footprint and a working height of 922 mm, is mounted directly on a 200 litre drum and fixed with wing screws. With a work surface of 790 x 540 mm and a load capacity of up to 80 kg, this brush washbasin can be used to clean large and heavy parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type K/KD is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

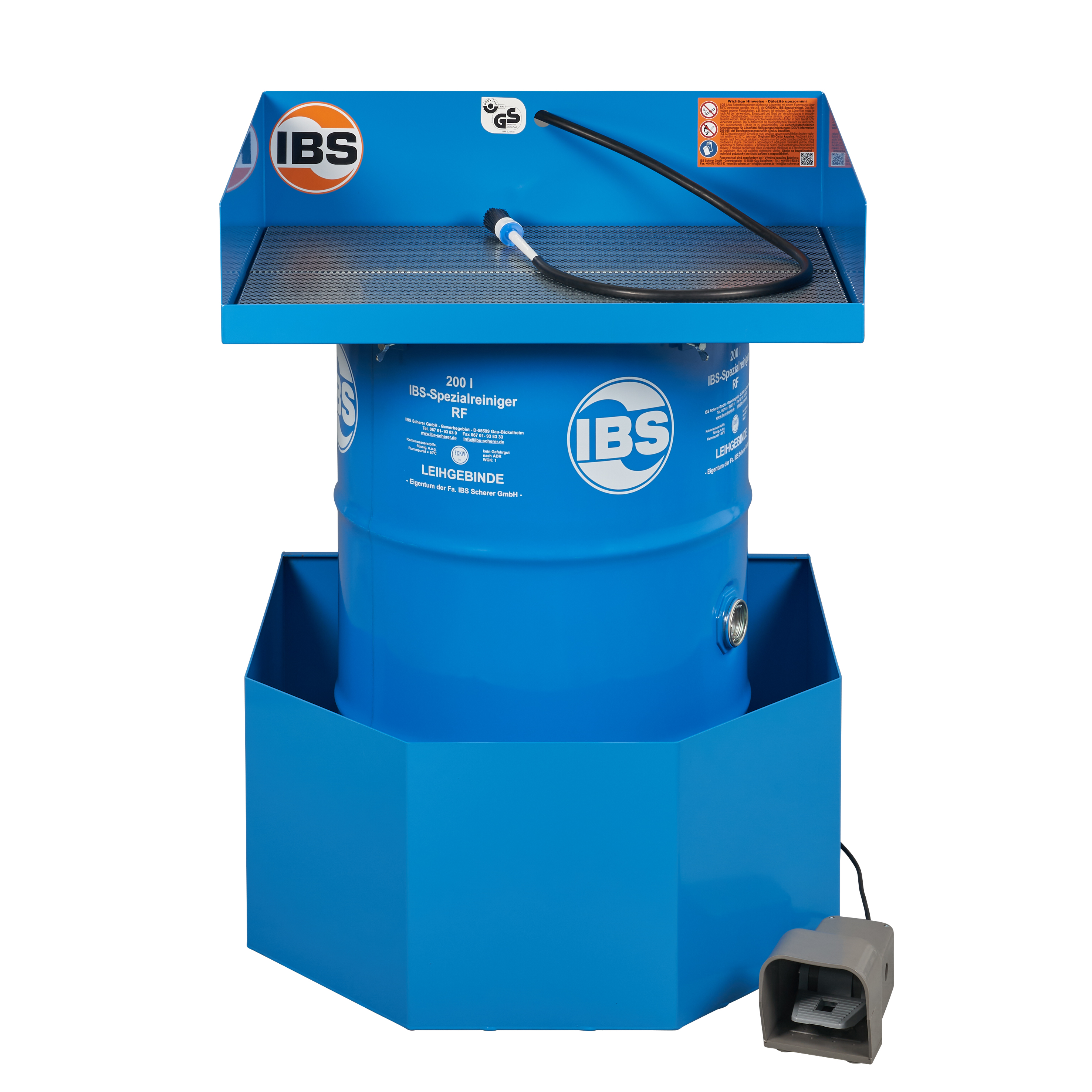

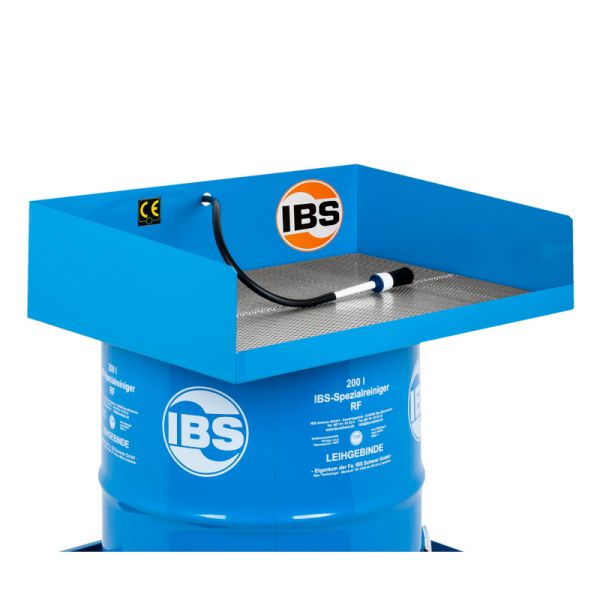

Description The IBS parts cleaning device type KP was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This version, with a small footprint and a working height of 920 mm, is mounted directly on a 200 litre drum. With a work surface of 790 x 540 mm and a load capacity of up to 80 kg, this brush washbasin can be used to clean large and heavy parts. The sturdy powder-coated sheet steel construction and the robust perforated plate guarantee a long service life. The lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type K/KD is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications
Description The IBS parts cleaning device type F2 was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This mobile device with wheels (sack truck principle) is suitable for mobile use in changing locations. With a medium-sized work surface (790 x 490 mm), a working height of 920 mm and a load capacity of up to 100 kg, this brush washer is suitable for cleaning medium-sized and heavier parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type F/F2 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications
Description The IBS parts cleaning device type G-50-I was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This closed industrial design with an ergonomic workbench height (895 mm) has a work surface of 790 x 490 mm. Thanks to its stable and compact design, this brush washbasin is suitable for cleaning large and medium-heavy parts weighing up to 150 kg. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life, while the lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type G-50 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications

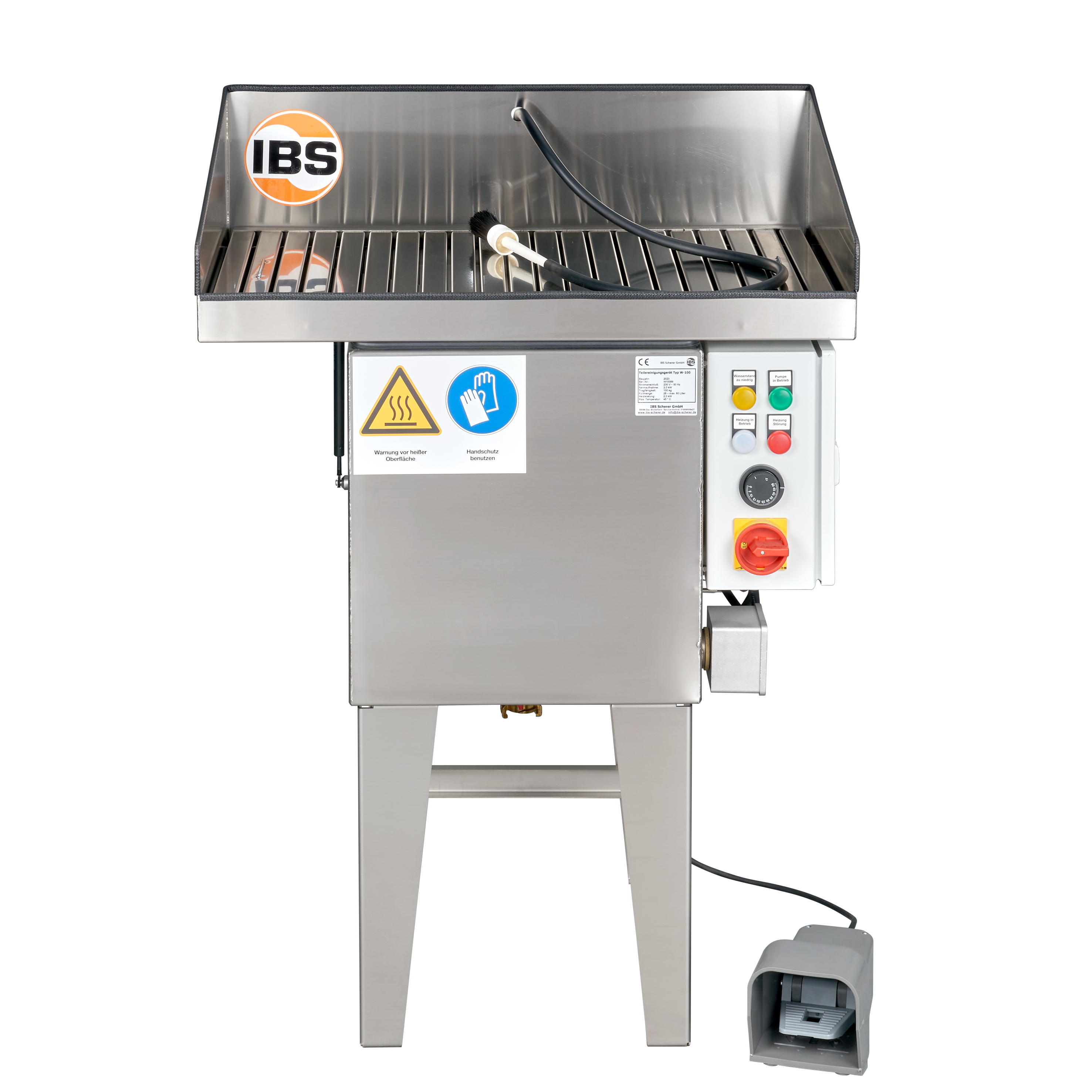

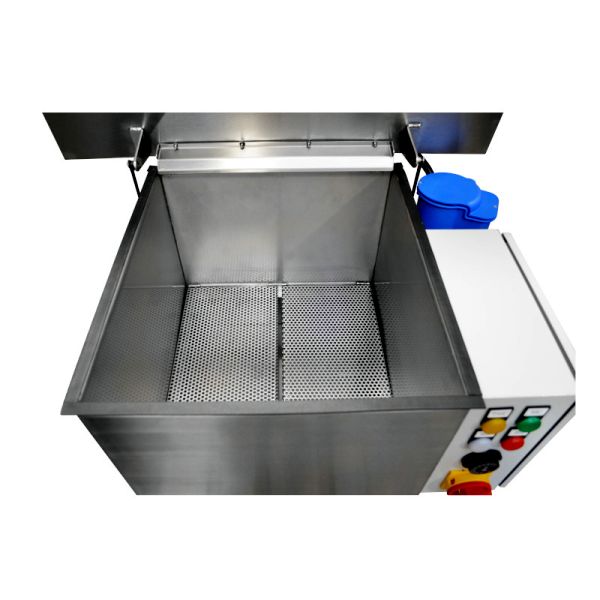

Description The IBS parts cleaning device type W-100 was specially developed for manual brush cleaning, with heating, of parts contaminated with oil and grease. The device is operated with neutral or alkaline water-based cleaning agents.This workshop version, with a working height of 921 mm, has a bath capacity of 28 to max. 60 litres and a smaller work surface of 790 x 490 mm. With a load capacity of up to 100 kg, this brush washbasin is ideal for cleaning medium-sized and heavy parts. The sturdy stainless steel construction and the robust galvanised slatted grating guarantee a long service life. FunctionBy pressing the foot switch, the cleaning liquid flows through the hollow brush and the parts soiled with oil and grease can be easily brushed off. Can also be used as an immersion bath. The parts to be cleaned can be placed in the tank with liquid by simply opening the upper work surface. The complete IBS pump set type W-100/W-250 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications Water-based cleaning agents
Description The IBS parts cleaning device type M was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures). This industrial version with ergonomic workbench height (870 mm) is characterised by its large work surface (1135 x 660 mm) and high load capacity of up to 250 kg. This makes this brush washbasin ideal for cleaning large and heavy parts. The sturdy powder-coated sheet steel construction and the robust galvanised slatted grating guarantee a long service life. The deep-set drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow. The convenient and safe foot switch technology is user-friendly and easy to operate. The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free. The complete IBS pump set type M/MD is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications
Description The IBS parts cleaning device type W-250 was specially developed for manual brush cleaning, with heating, of parts contaminated with oil and grease. The device is operated with neutral or alkaline water-based cleaning agents.This workshop version, with a working height of 929 mm, has a bath capacity of 45 to max. 100 litres and a large work surface of 1135 x 660 mm. With a load capacity of up to 250 kg, this brush washbasin is ideal for cleaning large and heavy parts. The sturdy stainless steel construction and the robust galvanised slatted grating guarantee a long service life. FunctionBy pressing the foot switch, the cleaning fluid flows through the hollow brush and the parts soiled with oil and grease can be easily brushed off. Can also be used as an immersion bath. The parts to be cleaned can be placed in the tank with liquid by simply opening the upper work surface. The complete IBS pump set type W-100/W-250 is included in the scope of delivery Further information IBS brush washbasin IBS disposal circuit Environment and safety Certifications Water-based cleaning agents
Description of the The IBS parts cleaning device type WD-100 was specially developed for manual cleaning of small parts contaminated with oil and grease using the high-pressure spraying method. The robust stainless steel design is operated with neutral or alkaline water-based cleaning agents. The bath in the tank is simply filled with cleaning agent after heating to operating temperature (20 to max. 45°C). By pressing the foot switch, the cleaning fluid flows through the spray gun and the parts contaminated with oil and grease can be easily blasted off. Advantages The high-pressure spray gun with nozzle ensures user-friendly handling (spraying method)The washing solution is heated up to 45°C in an energy-efficient mannerSteam outlet and air nozzles keep the large viewing window clean and free of spray waterPowerful LED light ensures optimum lighting and a clear view of the interiorThe temperature regulator allows individual adjustment to every cleaning taskWith low water cut-out for optimum protectionThe fine filter catches coarse dirt and is easy to replaceFurther information IBS brush washbasin IBS disposal circuit Environment and safety Certifications Water-based cleaning agents
The soiled items to be washed are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the appliance is switched on and the suds are heated in the tank. When the appliance is closed, the basket rotates around its own axis at a constant speed. The pump units suck the suds out of the wash tank and convey them through 6 stainless steel nozzle pipes with overlapping flat-jet nozzles. The items to be cleaned are intensively blasted from all sides with the hot suds while the motor-driven basket rotates evenly. When the cleaning process is finished, the unit switches off automatically. Advantages 2 pumps arranged horizontally 6 three-dimensional nozzle pipes made of stainless steel Robust stainless steel construction additional small parts cleaning basket made of stainless steel (Ø 170 mm) rotating washing basket made of stainless steel, V-belt drive via separate motor vapour extractor Stainless steel sieve plate with filter basket above the wash tank Low-water cut-out Individually height-adjustable feet
Accessories

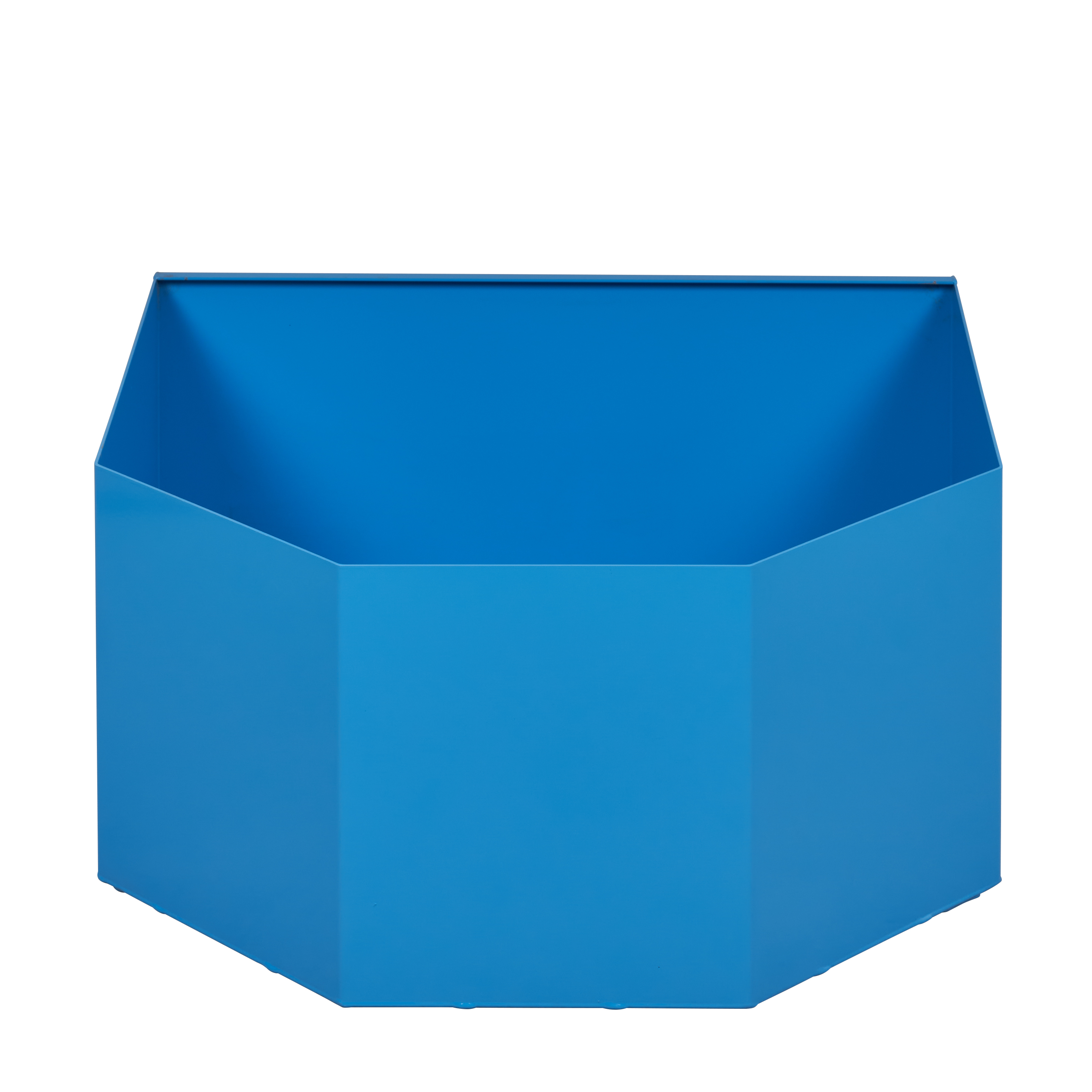

The collecting tray type WK is the suitable safety collecting tray for the following IBS parts cleaning devices: IBS parts cleaning device type K IBS parts cleaning device type KD IBS parts cleaning device type KP The drip tray is suitable for the environmentally friendly and safe storage of water-polluting substances (cleaning agents). The drip tray is made of 3 mm sheet steel, powder-coated and TüV-tested.
